2025 Chevrolet Trailblazer RS, 4WDFACTORY OEM SERVICE PROCEDURE

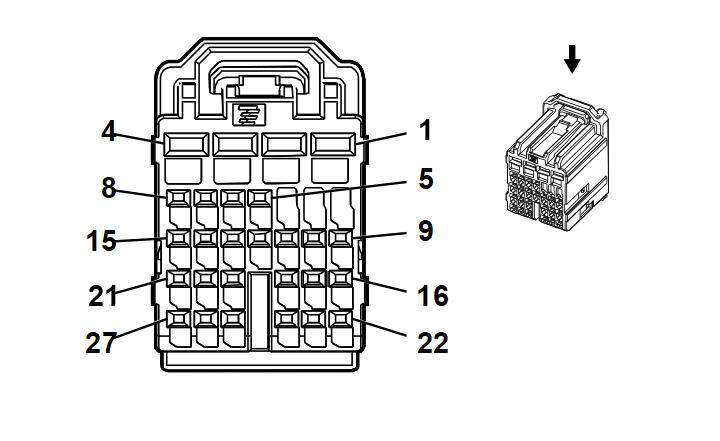

K9 Body Control Module X6

GM2537272Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body Wiring Harness
  • OEM Connector: 2098067-5
  • Service Connector: 13576035
  • Description: 27-Way F 0.64, 2.8 Series (PK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I 13582298 J-35616-64B (L-BU) J-38125-215A
II 19354201 J-35616-35 (VT) J-38125-553
Pin Size Color Circuit Function Terminal Type ID Option
1 1.5 GY 5911 Door Lock Actuator Lock Control 2 II
2 2.5 GY 295 Door Lock Actuator Lock Control II -
3 2.5 BK 550 Ground II -
4 2.5 BN / YE 294 Door Lock Actuator Unlock Control II -
5 0.35 VT / GY 1303 Liftgate Ajar Switch Signal 1 I TB4
6 0.35 BN / WH 781 Driver Door Lock Switch Unlock Signal I -
7 0.5 GY / BN 309 Right Park Lamp Control I TLL
8 - - - Not Occupied - -
9 0.35
0.35		 GN / BU
GN / BU		 6133
6133		 Body Control Module LIN Bus 2
Body Control Module LIN Bus 2		 I
I		 (MRG/M3F)-KA1
KA1+ (MRG/M3F)
10 0.35 GN / YE 6134 Body Control Module LIN Bus 3 I
11 - - - Not Occupied - -
12 0.5 WH / VT 6567 Rear Turn Signal Lamp Feedback Signal I UGE
13 0.5 VT / BK 6568 Front Turn Signal Lamp Feedback Signal I -TLL
14 0.5 WH / YE 7545 Right Front Turn Signal Lamp Feedback Signal I -TLL
15 0.35 YE / BU 5797 Rear Closure Handle Switch Open Signal I TB4
16 0.35 GN / BN 6132 Body Control Module LIN Bus 1 I C3U
17 - - - Not Occupied - -
18 0.5 BU 2500 High Speed GMLAN Serial Data [+] 1 I -
19 0.5 WH 2501 High Speed GMLAN Serial Data [-] 1 I -
20 - 23 - - - Not Occupied - -
24 0.5 BU 2500 High Speed GMLAN Serial Data [+] 1 I -
25 0.5 WH 2501 High Speed GMLAN Serial Data [-] 1 I -
26 - - - Not Occupied - -
27 0.5 WH / BK 7544 Right Rear Turn Signal Lamp Feedback Signal I UGE
