2025 Chevrolet Trailblazer RS, 4WDFACTORY OEM SERVICE PROCEDURE

Installation Procedure

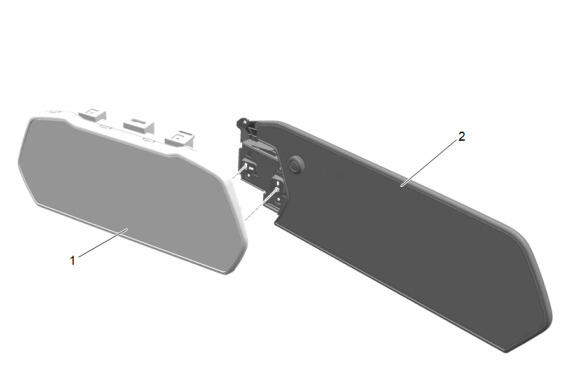

  1. GM6473007Courtesy of GENERAL MOTORS COMPANY

    Radio Control (2) @ Instrument Panel Cluster Control Module (1) - Install

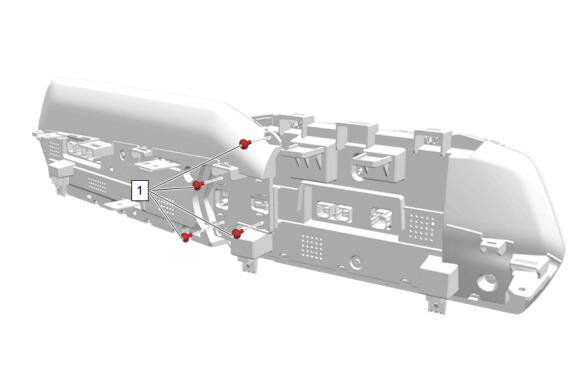

  2. GM6473006Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Driver Information Display Screw (1) - Install and tighten [4x] - Fastener Specifications

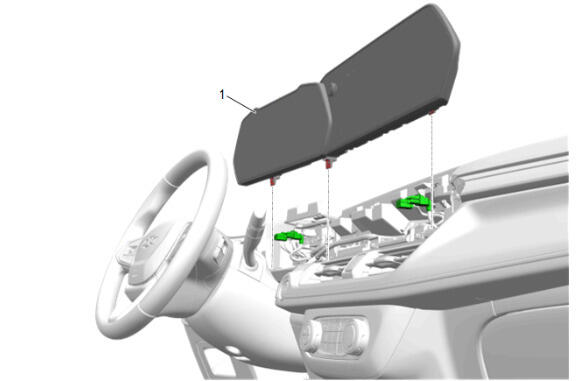

  3. GM6323196Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Driver Information Display (1) - Install

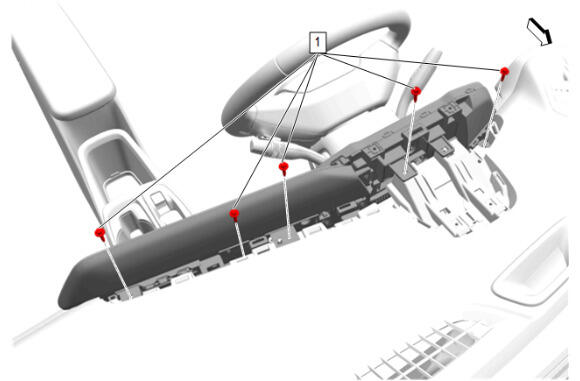

  5. GM6323194Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Driver Information Display Bolt (1) - Install and tighten [5x] 2.5 N.m (22 lb in)

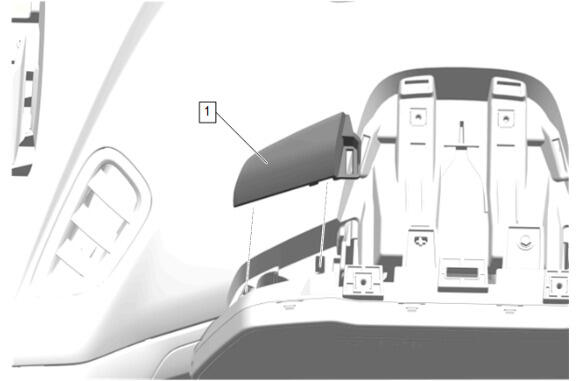

  6. GM6281289Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Cover- Left Side (1) - Install - Instrument Panel Upper Trim Panel Cover Replacement - Left Side

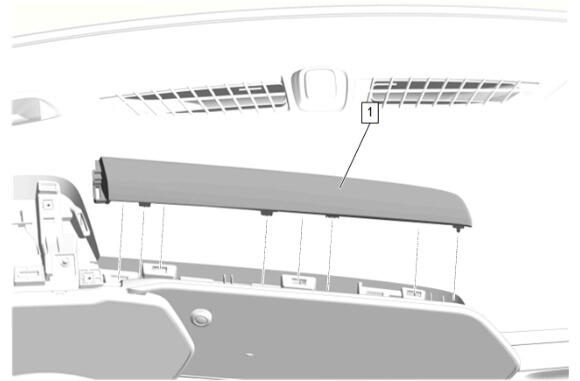

  7. GM6281290Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Cover- Right Side (1) - Install - Instrument Panel Upper Trim Panel Cover Replacement - Right Side

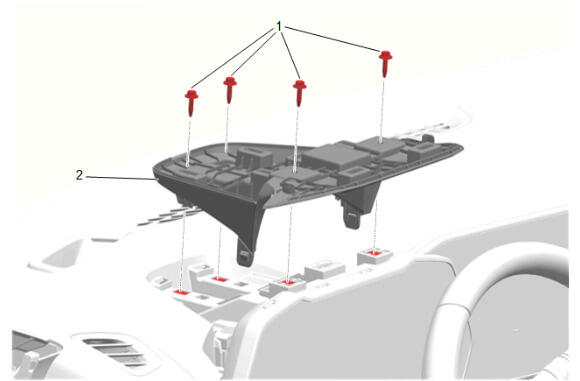

  8. GM6281288Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Instrument Cluster Hood (2) - Install - Instrument Panel Instrument Cluster Hood Replacement

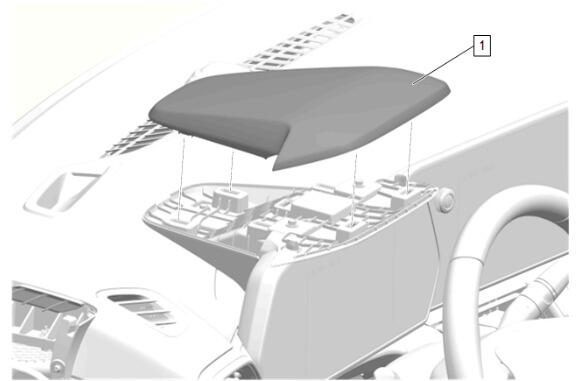

  9. GM6285836Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement
