2025 Chevrolet Trailblazer RS, 4WDFACTORY OEM SERVICE PROCEDURE

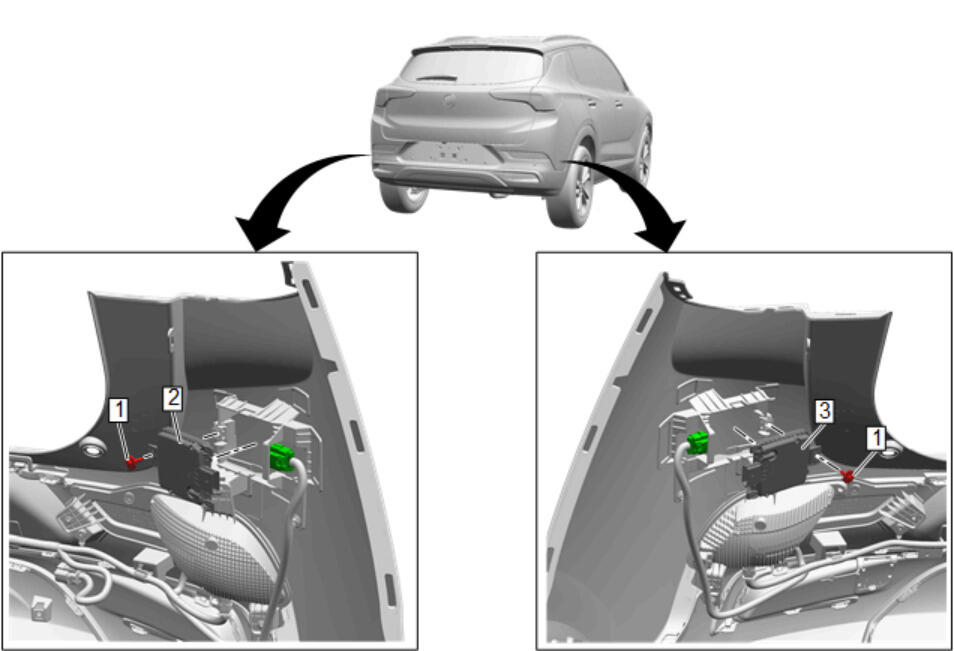

Side Obstacle Detection Control Module Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Bumper Fascia Replacement |
|
| 1 | Side Object Sensing Alert Module Bolt
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Side Object Sensor Module - Left Procedure
|
| 3 | Side Object Sensor Module - Right Procedure
|
