Installation Procedure
Rear Closure Hands Free Module (2) - Install
- Connect the electrical connector.
- Rear Closure Hands Free Module Screw (1) - Install and tighten [2x] 0.4 N.m (4 lb in)

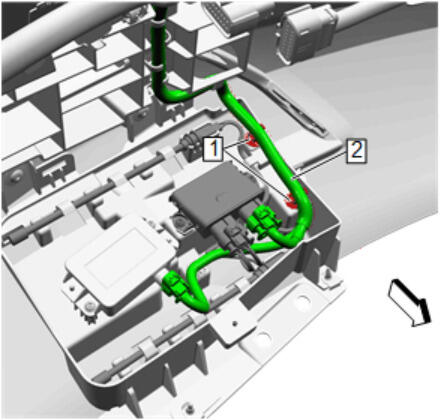

Wiring Harness (2) - Position
- Wiring Harness Retainer (1) - Install [2x]
Rear Closure Hands Free Sensor Shield (2) - Install - Rear Closure Hands Free Sensor Shield Replacement

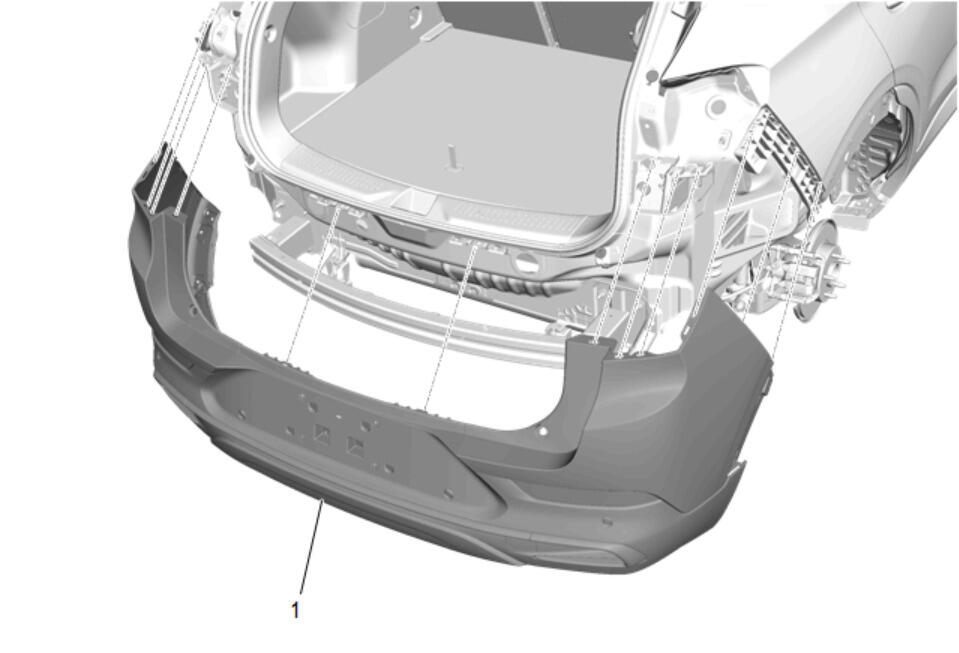

Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Replacement
- Perform the necessary programming and setup procedure: K39 Liftgate Control Module: Programming and Setup (Without 09F) , or K39 Liftgate Control Module: Programming and Setup (With 09F)
