Removal Procedure

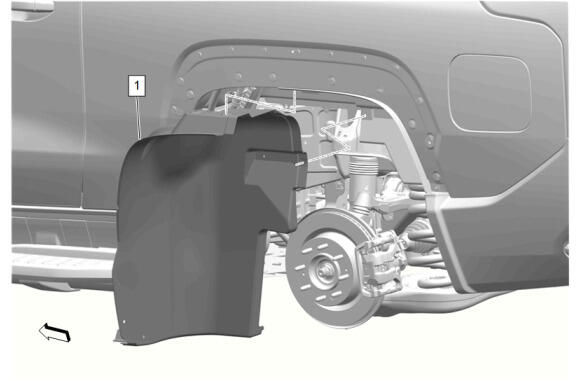

Rear Wheelhouse Panel Front Liner (1) - Remove - Rear Wheelhouse Panel Front Liner Replacement
Disconnect the electrical connectors and release the wiring harness retainers as necessary.

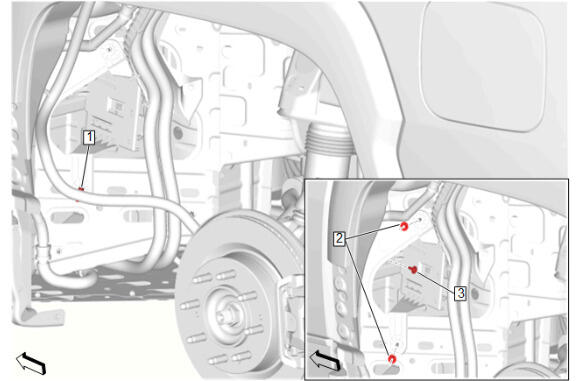

- Retainer (1) - Remove
- Power Line Communication Module Bracket Nut (2) - Remove [2x]
- Power Line Communication Module Bracket Bolt (3) - Remove

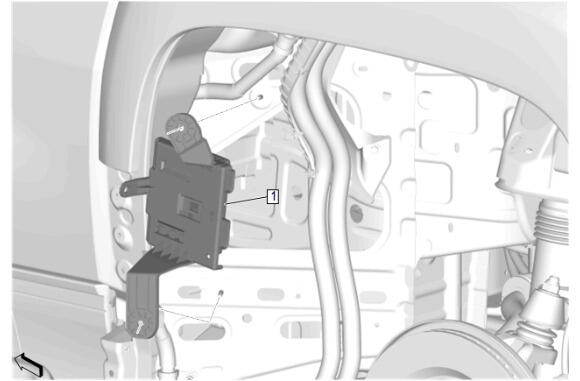

Power Line Communication Module Bracket (1) - Remove
Release the retaining tab.

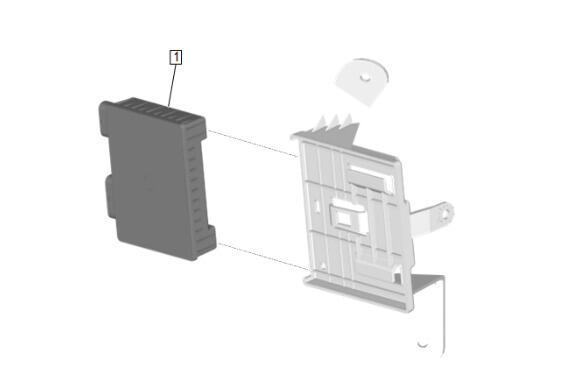

- Off-Board Charger Control Module (1) - Remove
