2024 Chevrolet Traverse Limited High Country, 4WDFACTORY OEM SERVICE PROCEDURE

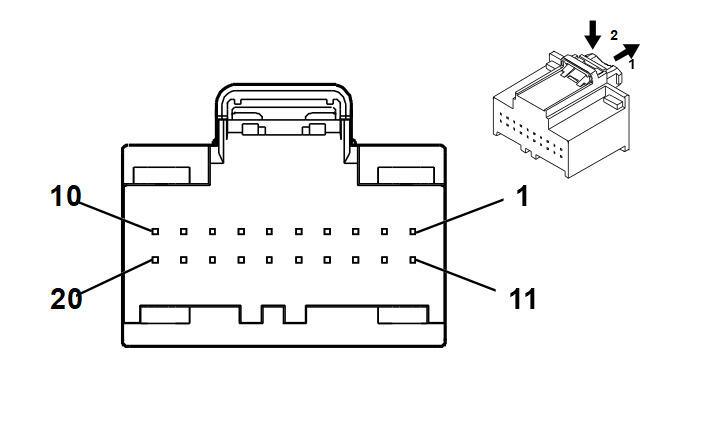

K33 HVAC Control Module X1
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 13584547 | J-35616-64B (L-BU) | J-38125-215A |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 - 3 | - | - | - | Not Occupied | - | - |
| 4 | 0.35 | BU / WH | 734 | Inside Air Temperature Sensor Signal | I | |
| 5 - 6 | - | - | - | Not Occupied | - | - |
| 7 | 0.35 | BK / BU | 7566 | Windshield Temperature and Inside Moisture Sensor Low Reference | I | |
| 8 - 13 | - | - | - | Not Occupied | - | - |
| 14 | 0.35 | GY / BU | 590 | Driver Solar Sensor Signal | I | |
| 15 - 17 | - | - | - | Not Occupied | - | - |
| 18 | 0.35 | BN | 404 | Upper Duct Air Temperature Sensor Signal | I | |
| 19 | 0.35 | BN / BK | 405 | Lower Duct Air Temperature Sensor Signal | I | |
| 20 | - | - | - | Not Occupied | - | - |
