Removal Procedure

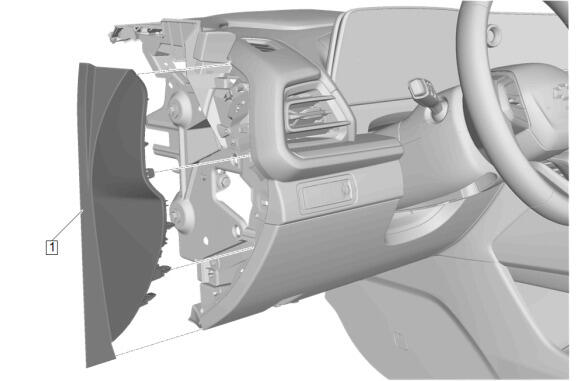

Using a flat-bladed plastic trim tool, release the retaining clips.
- Pull rearward to clear the tab and remove the instrument panel outer trim cover (1).
Instrument Panel Knee Bolster Bolt (1) - Remove [3x]
- WARNING:
When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

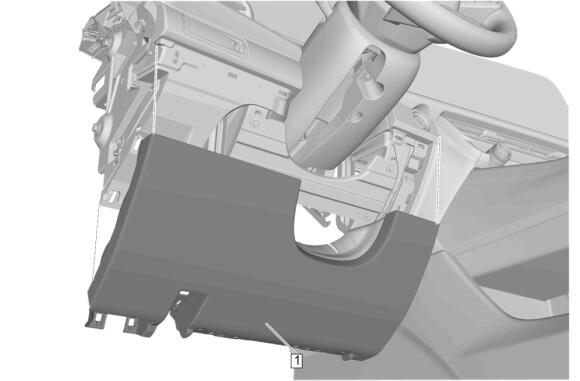

Instrument Panel Knee Bolster (1) - Reposition
Open the instrument panel compartment door.

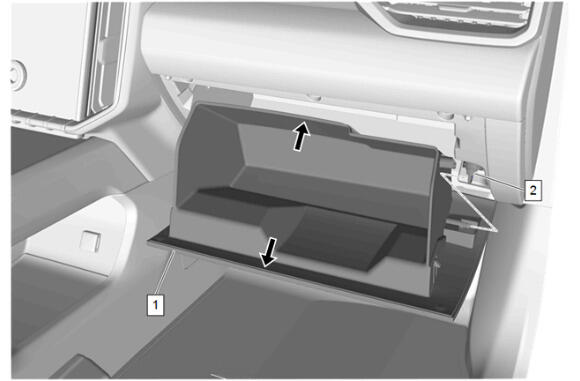

- Disconnect the instrument panel compartment door dampener (2) from the instrument panel compartment door (1).
- Push the sides of the instrument panel compartment door (1) to allow the door to open past the stops.

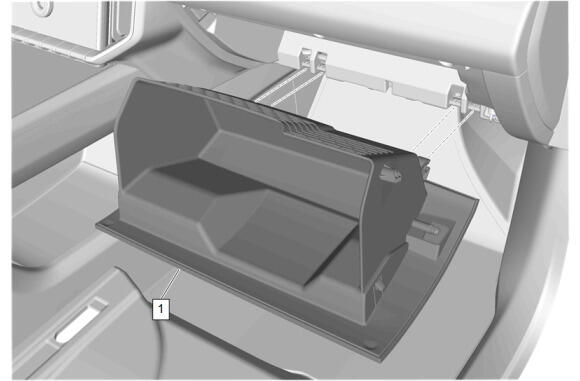

Unsnap the instrument panel compartment door (1) from the instrument panel assembly.
Instrument Panel Compartment Bolt (1) - Remove [7x]
- Instrument Panel Compartment Door Opening Frame (2) - Remove
Front Floor Console (1) - Remove - Front Floor Console Removal and Installation

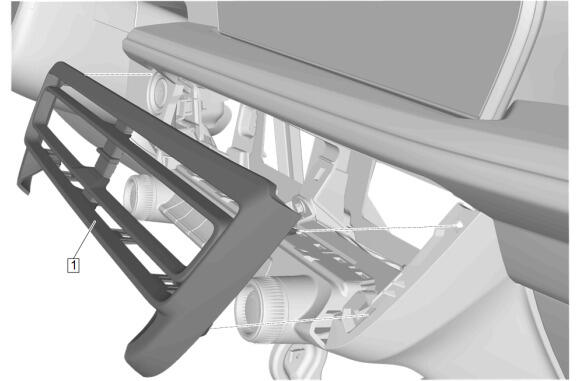

Using a flat-bladed plastic trim tool, release the retaining clips.
- Trim Accent Molding (1) - Remove

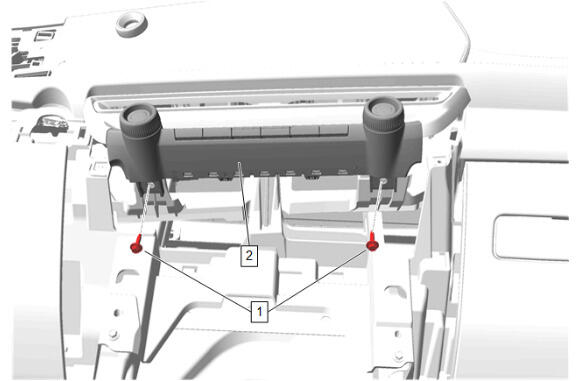

Heater and Air Conditioning User Interface Control Bolt (1) - Remove [2x]
- Heater and Air Conditioning User Interface Control (2) - Remove
- Disconnect the electrical connector.
Instrument Panel Lower Trim Panel Bolt (1) - Remove [4x]
- Instrument Panel Lower Center Trim Panel (2) - Remove
- Disconnect the electrical connector.
- NOTE:
Some components not shown for graphic clarity.

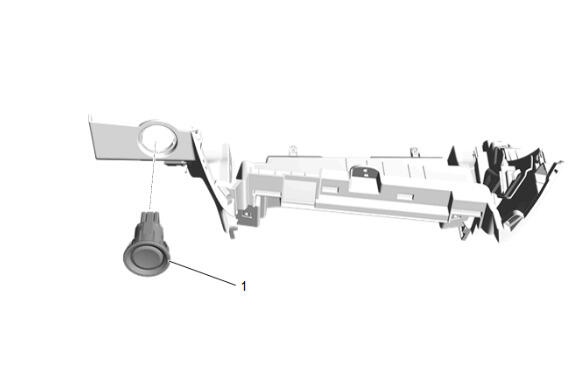

Release the retaining tab.
- Ignition and Start Switch (1) - Remove
