Removal Procedure

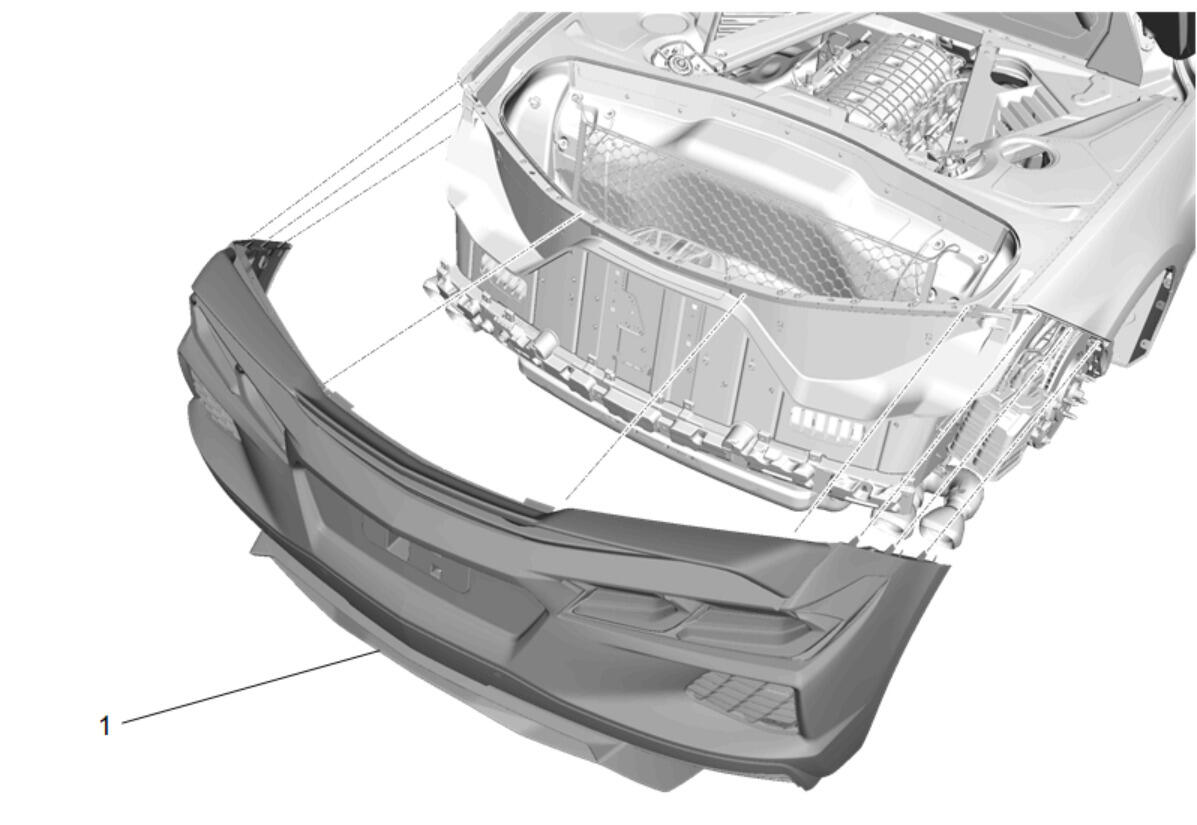

With the aid of an assistant, remove the fascia. (1) - Rear Bumper Fascia Removal and Installation (1LT / 2LT / 3LT) , or Rear Bumper Fascia Removal and Installation (T0F / T0G) , or Rear Bumper Fascia Removal and Installation (T0E)

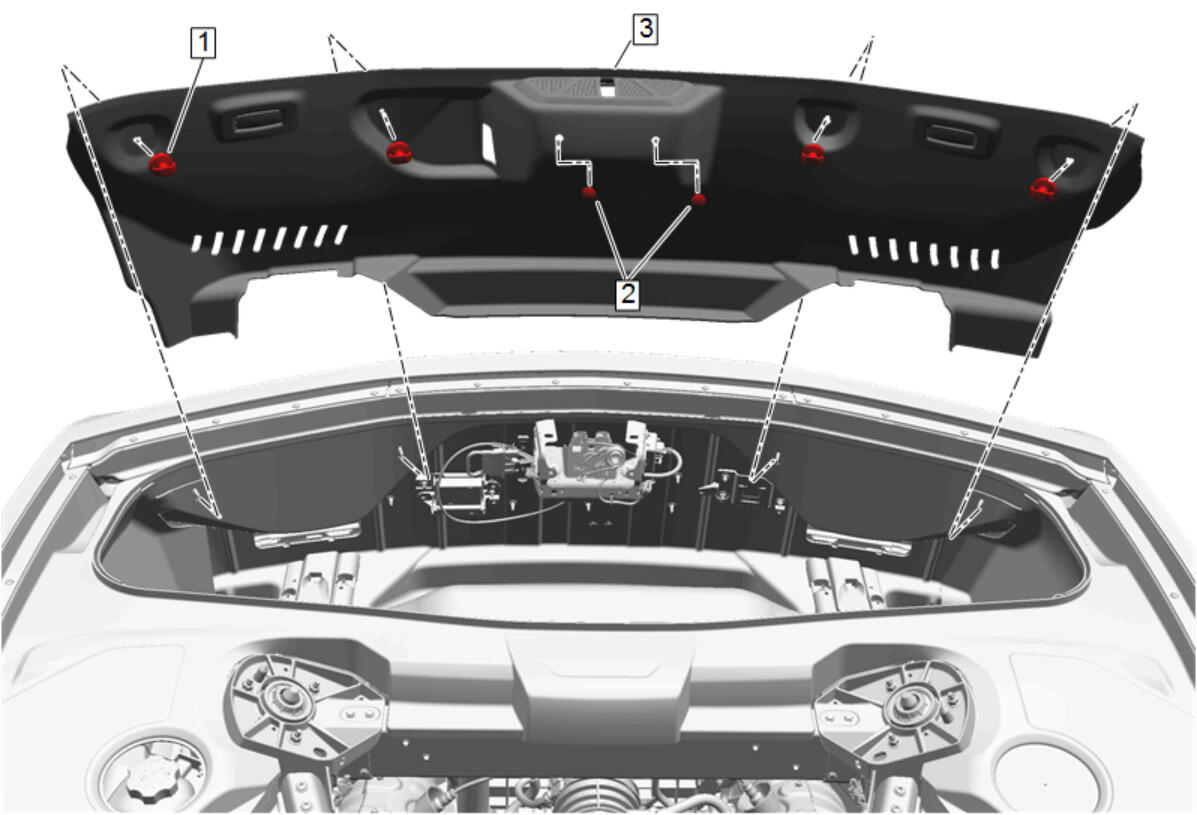

Rear End Trim Cover Panel (3) Remove - Rear End Trim Cover Panel Replacement

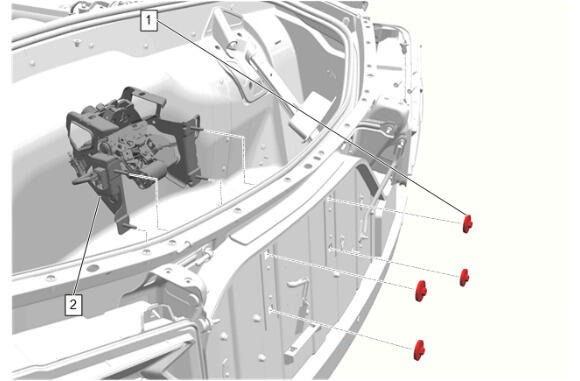

Use a grease pencil to mark the original location of the rear compartment lid latch (2).
- Disconnect the electrical connector.
- Liftgate Latch Nut (1) - Remove [4x]
- Rear Compartment Lid Latch (2) - Remove
