2024 Chevrolet Blazer RS, 4WDFACTORY OEM SERVICE PROCEDURE

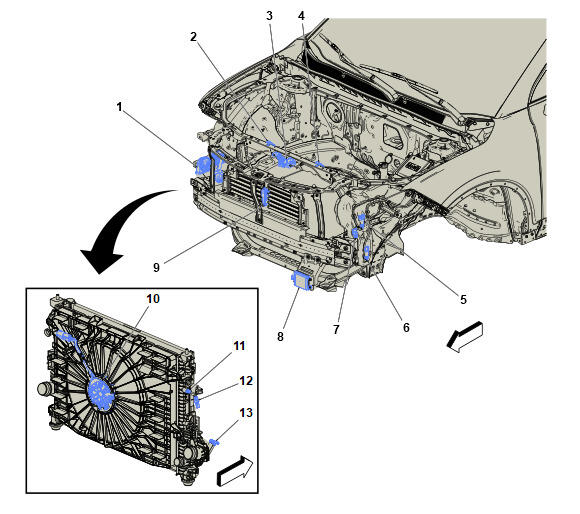

Front of Engine Compartment Components
| Items |
|---|
| P13 Horn Assembly P13 Horn Assembly |
| B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right |
| B55 Engine Hood Switch B55 Engine Hood Switch |
| B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left |
| G19 Rear Window Washer Pump G19 Rear Window Washer Pump |
| G24 Windshield Washer Pump G24 Windshield Washer Pump |
| B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch |
| B233B Radar Sensor Module - Long Range (UGN) B233B Radar Sensor Module - Long Range (UGN) |
| M96A Active Grille Air Shutter 1 Actuator M96A Active Grille Air Shutter 1 Actuator |
| G10 Cooling Fan Motor G10 Cooling Fan Motor (LGX) , or G10 Cooling Fan Motor (LSY) |
| B203 Radiator Coolant Temperature Sensor (LSY) B203 Radiator Coolant Temperature Sensor (LSY) |
| B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor (LGX) , or B1 A/C Refrigerant Pressure Sensor (LSY) |
| B111 Turbocharger Boost Sensor (LSY) B111 Turbocharger Boost Sensor (LSY) |
