2024 Chevrolet Blazer RS, 4WDFACTORY OEM SERVICE PROCEDURE
K99 Steering Column Position Control Module X1

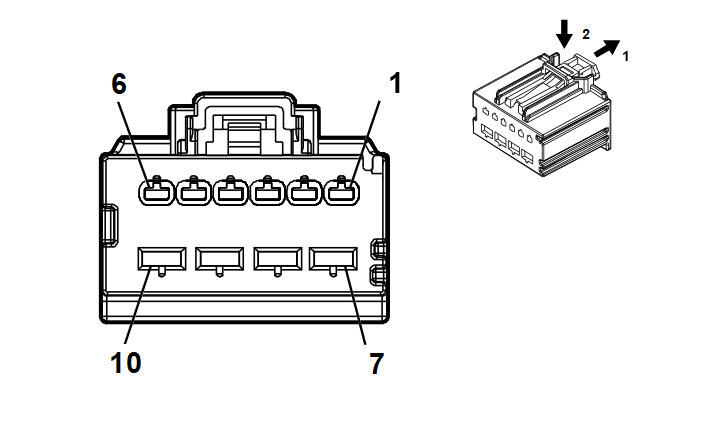

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 19300432 | J-35616-2A (GY) | J-38125-557 |
| II | 85544080 | J-35616-4A (PU) | J-38125-11A |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | BK | 1550 | Ground | I | N38 |
| 2 | 0.35 | GN / WH | 7530 | Driver Seat Adjuster Memory Module LIN Bus 1 | I | N38 |
| 3 | 0.35 | GN / BN | 2095 | Steering Column Tilt and Telescope Switch Rearward Signal | I | N38 |
| 4 | 0.35 | BN / GY | 2096 | Steering Column Tilt and Telescope Switch Up Signal | I | N38 |
| 5 | 0.35 | YE / BN | 2097 | Steering Column Tilt and Telescope Switch Down Signal | I | N38 |
| 6 | 0.35 | BU / YE | 2094 | Steering Column Tilt and Telescope Switch Forward Signal | I | N38 |
| 7 | 1.5 | RD / BN | 3640 | Battery Positive Voltage | II | N38 |
| 8 | 1.5 | BK | 1750 | Ground | II | N38 |
| 9 - 10 | - | - | - | Not Occupied | - | - |
