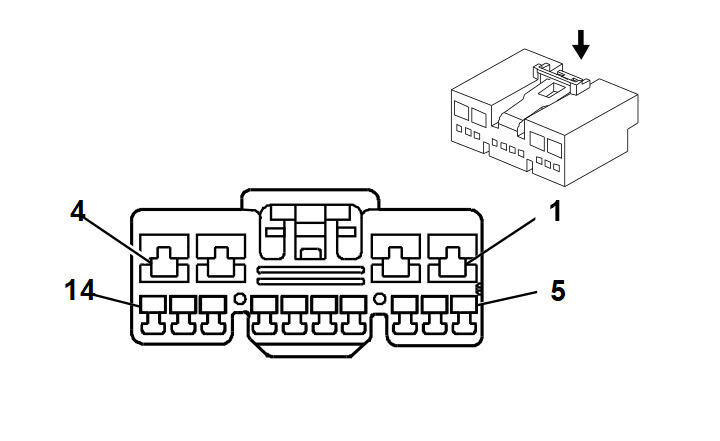

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-4A (PU)	No Tool Required
II	Not required	J-35616-64B (L-BU)	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	2	RD / WH	3540	Battery Positive Voltage	I	-
2	2	OG	5938	Sunshade Motor Up Control	I	-
3	2	VT	5939	Sunshade Motor Down Control	I	-
4	2	BK	550	Ground	I	-
5	0.35	BU	5027	Sunroof Switch Serial Data 1 Signal	II	-
6	0.35	BU / WH	3032	Front Sunshade Switch Signal	II	-
7	0.35	PK	5043	Keyword 2000 Serial Data	II	-
8	-	-	-	Not Occupied	-	-
9	0.35	BN	6132	Body Control Module LIN Bus 1	II	-
10	-	-	-	Not Occupied	-	-
11	0.35	VT / WH	128	Sunroof Switch Low Reference	II	-
12	0.35	BK / GN	5033	Sunroof Obstruction Sensor Voltage Reference	II	-
13	0.35	WH	5034	Sunroof Obstruction Sensor Signal 1	II	-
14	0.35	YE	5124	Sunroof Obstruction Sensor Signal 2	II	-
