2022 Chevrolet Equinox LS, FWDFACTORY OEM SERVICE PROCEDURE
A23C Liftgate Latch Assembly (TC2)

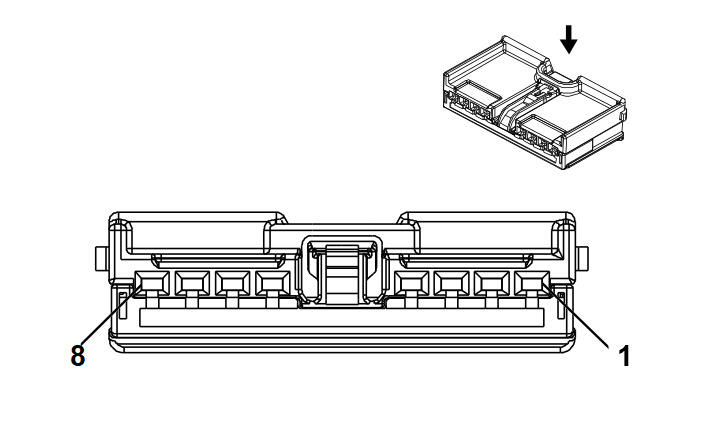

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-14 (GN) | No Tool Required |
| II | Not required | J-35616-2A (GY) | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | GY | 4668 | Rear Closure Latch Pawl Status Signal | II | - |
| 2 | 0.35 | GN / BK | 4659 | Rear Closure Open Switch Signal | II | - |
| 3 | 0.35 | GY / VT | 4678 | Rear Closure Latch Unlatch Status | II | - |
| 4 | 0.35 | BU / YE | 4679 | Rear Closure Motor Release Control | II | - |
| 5 | 0.35 | BU / BK | 4665 | Rear Closure Latch Ratchet Status | II | - |
| 6 | 0.5 | BK / VT | 4656 | Rear Closure Object Sensor Low Reference | II | - |
| 7 | 1 | BN | 4681 | Rear Closure Cinch Latch Motor Cinch Control | I | - |
| 8 | 1 | BU / GY | 4682 | Rear Closure Cinch Latch Motor Release Control | I | - |
