2020 Chevrolet Tahoe LS, 4WD, Gas/EthanolFACTORY OEM SERVICE PROCEDURE
Rear Seat Heater Control Module Replacement

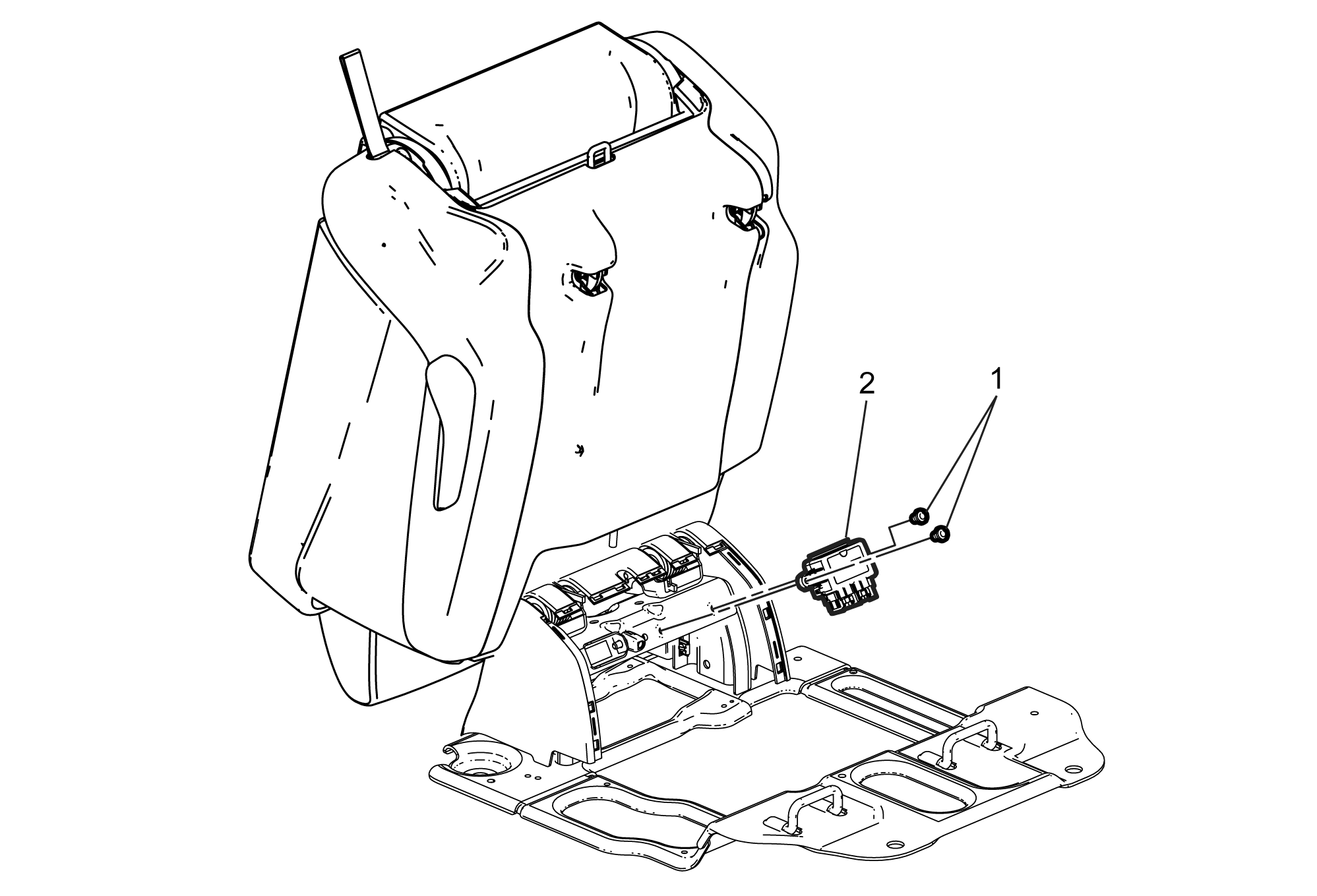

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat riser opening finish cover. Refer to Rear Seat Riser Opening Finish Cover Replacement . |
|
| 1 | Rear Seat Heater Control Module Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Rear Seat Heater Control Module Procedure Disconnect the electrical connectors. |
