2020 Chevrolet Impala LTFACTORY OEM SERVICE PROCEDURE
Peripheral Human Machine Interface Control Module Replacement

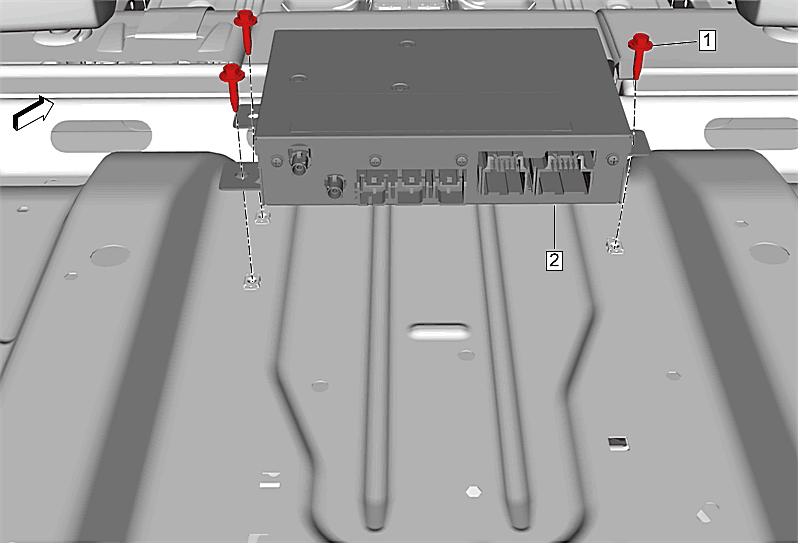

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Window Panel Trim Replacement |
|
| 1 | Peripheral Human Machine Interface Control Module Bracket Bolt[3x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Peripheral Human Machine Interface Control Module Procedure
|
