2020 Chevrolet Camaro SS, 2D Coupe, Standard TransFACTORY OEM SERVICE PROCEDURE

Engine Control Module Replacement (LT1)

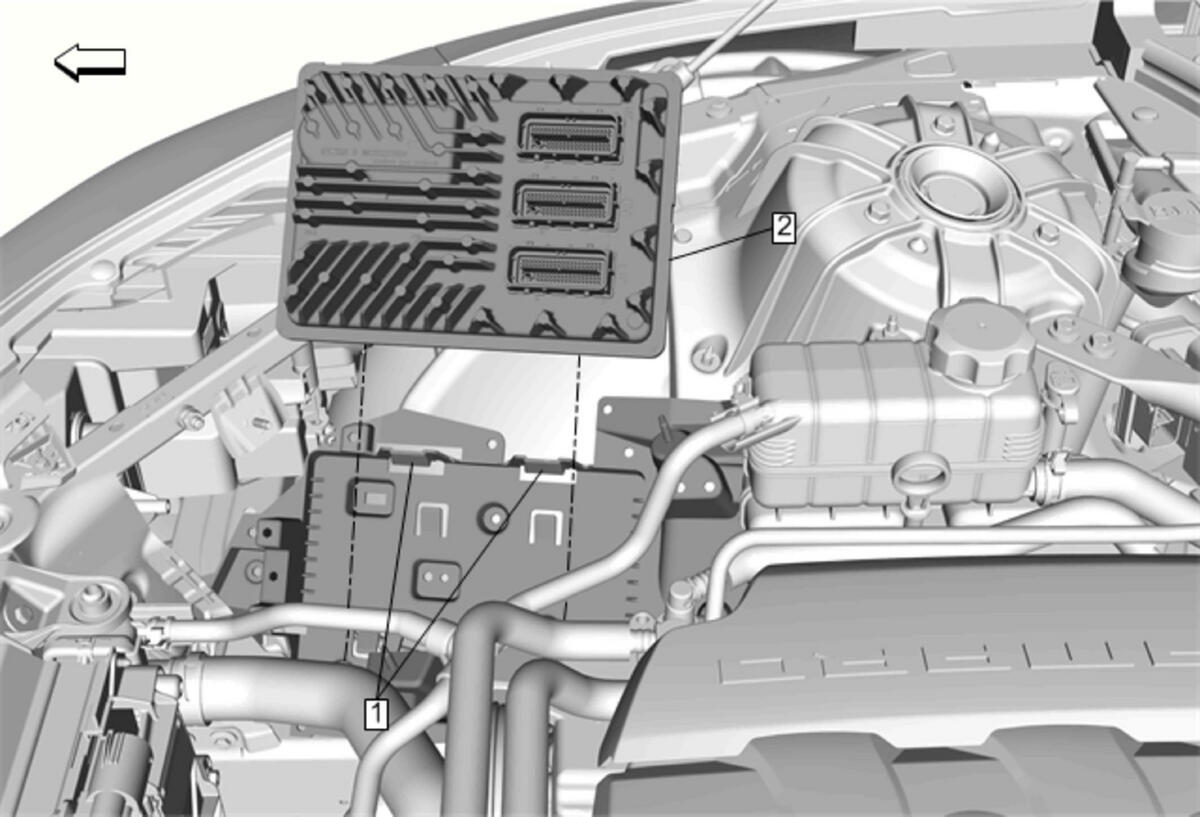

GM4193172

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection
Engine Wiring Harness Fuse Block Bracket Replacement

1

Engine Control Module Bracket Retaining Tab [2x]

2

Engine Control Module

WARNING:

Refer to Safety Glasses Warning .
