2020 Chevrolet Camaro SS, 2D Coupe, Standard TransFACTORY OEM SERVICE PROCEDURE

K19 Suspension Control Module

GM1711002Courtesy of GENERAL MOTORS COMPANY

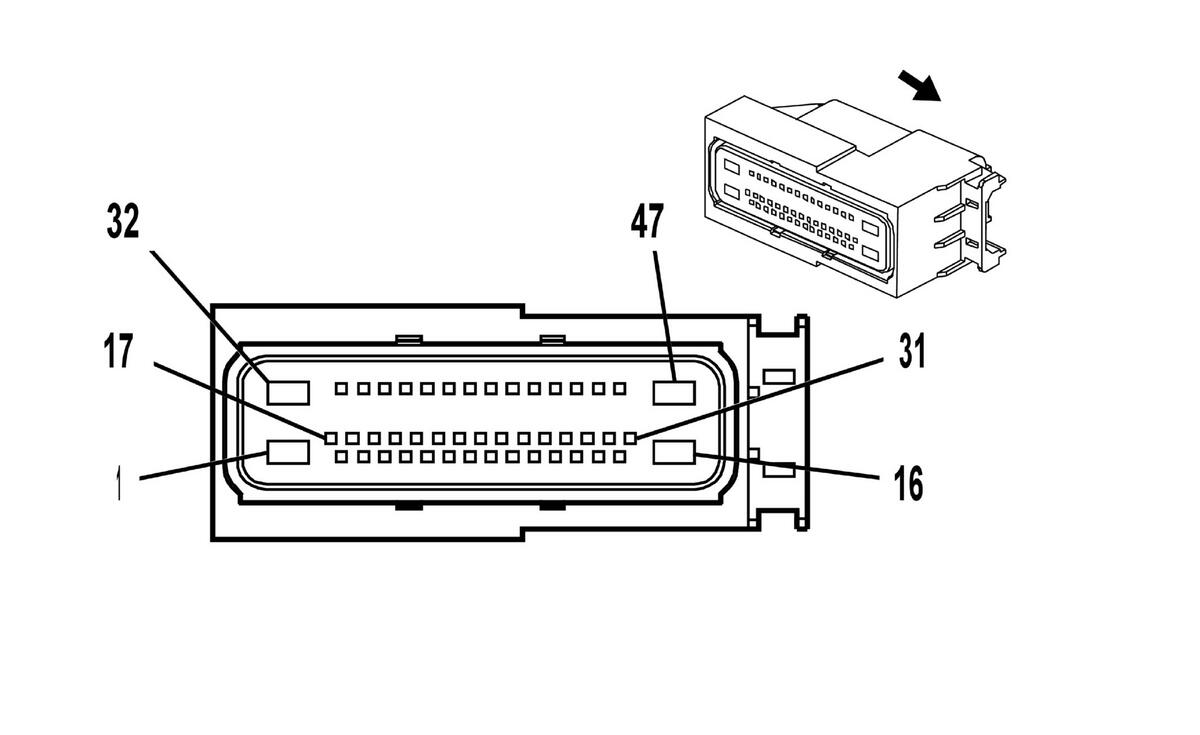

Connector Part Information
  • Harness Type: Body
  • OEM Connector: 89047377
  • Service Connector: 89047377
  • Description: 47-Way F 0.64, 6.3 Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13578924 J-35616-64B (LT BU) J-38125-215A SAITS-A03T-M064 Yazaki 14 9 9
II 13579754 J-35616-42 (RD) J-38125-215A 15476168 Delphi 5 F 3
III 13581373 J-35616-64B (LT BU) J-38125-215A SAITS-A03T-M064 Yazaki 14 9 9
Pin Size Color Circuit Function Terminal Type ID Option
1 - - - Not Occupied - -
2 0.35 BK/GN 1209 Left Rear Suspension Position Sensor Low Reference I ((F55/FEA)-TR7)/(F55+TR7)
3 0.35 YE/WH 1213 Right Front Suspension Position Sensor Signal I ((F55/FEA)-TR7)/(F55+TR7)
4 - - - Not Occupied - -
5 0.35 BK/YE 1215 Right Rear Suspension Position Sensor Low Reference I ((F55/FEA)-TR7)/(F55+TR7)
6 0.35 BN/WH 1207 Left Front Suspension Position Sensor Signal I ((F55/FEA)-TR7)/(F55+TR7)
7 - 11 - - - Not Occupied - -
12 0.35 BU/YE 6105 High Speed GMLAN Serial Data [+] 2 I -
13 0.35 BU/YE 6105 High Speed GMLAN Serial Data [+] 2 I -
14 0.35 WH 6106 High Speed GMLAN Serial Data [-] 2 I -
15 0.35 WH 6106 High Speed GMLAN Serial Data [-] 2 I -
16 2 WH/BU 5986 Serial Data Communication Enable II F55/FEA
17 0.35 GN/WH 1210 Left Rear Suspension Position Sensor Signal I ((F55/FEA)-TR7)/(F55+TR7)
18 0.35 BK/GY 1212 Right Front Suspension Position Sensor Low Reference I ((F55/FEA)-TR7)/(F55+TR7)
19 - - - Not Occupied - -
20 0.35 GN/GY 1216 Right Rear Suspension Position Sensor Signal I ((F55/FEA)-TR7)/(F55+TR7)
21 0.35 BK/BU 1206 Left Front Suspension Position Sensor Low Reference I ((F55/FEA)-TR7)/(F55+TR7)
22 - 23 - - - Not Occupied - -
24 0.35 WH 2501 High Speed GMLAN Serial Data [-] 1 I -
25 0.5 WH 2501 High Speed GMLAN Serial Data [-] 1 I -
26 - - - Not Occupied - -
27 0.75 BN 1009 Right Front Shock Absorber Actuator Decrease Damping Control III F55
28 0.75 WH/BK 1006 Right Front Shock Absorber Actuator Increase Damping Control III F55
29 - - - Not Occupied - -
30 0.75 WH/GN 1005 Left Front Shock Absorber Actuator Decrease Damping Control III F55
31 0.75 WH/GY 1448 Left Front Shock Absorber Actuator Increase Damping Control III F55
32 2 RD/BU 540 Secondary Fused Battery Positive Voltage 5 II -
33 0.35 YE/RD 1208 Left Rear Suspension Position Sensor Voltage Reference I ((F55/FEA)-TR7)/(F55+TR7)
34 0.35 BN/RD 1211 Right Front Suspension Position Sensor Voltage Reference I ((F55/FEA)-TR7)/(F55+TR7)
35 0.35 GN/RD 1214 Right Rear Suspension Position Sensor Voltage Reference I ((F55/FEA)-TR7)/(F55+TR7)
36 0.35 BU/RD 1205 Left Front Suspension Position Sensor Voltage Reference I ((F55/FEA)-TR7)/(F55+TR7)
37 - 38 - - - Not Occupied - -
39 0.35 BU 2500 High Speed GMLAN Serial Data [+] 1 I -
40 0.5 BU 2500 High Speed GMLAN Serial Data [+] 1 I -
41 - - - Not Occupied - -
42 0.75 WH/BK 1013 Left Rear Shock Absorber Actuator Decrease Damping Control III F55
43 0.75 BN/VT 1010 Left Rear Shock Absorber Actuator Increase Damping Control III F55
44 - - - Not Occupied - -
45 0.75 VT/ 1017 Right Rear Shock Absorber Actuator Decrease Damping Control III F55
46 0.75 YE 1014 Right Rear Shock Absorber Actuator Increase Damping Control III F55
47 2 BK 2350 Ground 23 II -
