2020 Chevrolet Camaro SS, 2D Coupe, Standard TransFACTORY OEM SERVICE PROCEDURE

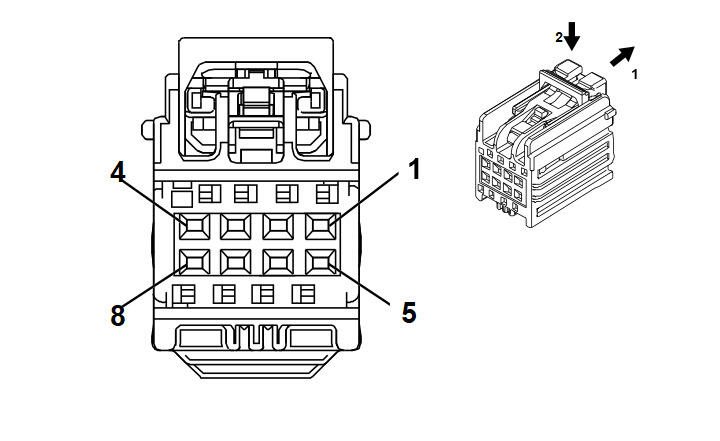

K182 Parking Assist Control Module X2
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-64B (LT BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | - | - | - | Not Occupied | - | - |
| 2 | 0.35 | YE/WH | 2377 | Right Rear Middle Parking Assist Sensor Signal | I | UD7 |
| 3 | 0.35 | YE | 2375 | Left Rear Outer Parking Assist Sensor Signal | I | UD7 |
| 4 | 0.35 | BN/WH | 2374 | Object Sensor Supply Voltage | I | UD7 |
| 5 | 0.35 | YE/VT | 2378 | Right Rear Outer Parking Assist Sensor Signal | I | UD7 |
| 6 | 0.35 | YE/BU | 2376 | Left Rear Middle Parking Assist Sensor Signal | I | UD7 |
| 7 | - | - | - | Not Occupied | - | - |
| 8 | 0.35 | BK/GY | 2379 | Object Sensor Low Reference | I | UD7 |
