2020 Chevrolet Camaro SS, 2D Coupe, Standard TransFACTORY OEM SERVICE PROCEDURE
K47 Rear Differential Clutch Control Module

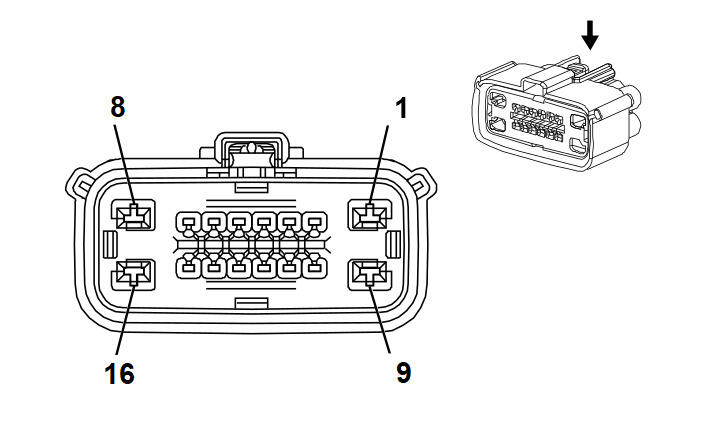

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-14 (GN) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| II | Not Required | J-35616-35 (VT) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | - | - | - | Not Occupied | - | - |
| 2 | 0.35 | WH | 6106 | High Speed GMLAN Serial Data [-] 2 | I | G96 |
| 3 | 0.35 | BU/YE | 6105 | High Speed GMLAN Serial Data [+] 2 | I | G96 |
| 4 | 0.75 | GY/RD | 4917 | Rear Axle Temperature Sensor Voltage Reference | I | G96 |
| 5 | 0.75 | GY/GN | 4918 | Rear Axle Temperature Signal | I | G96 |
| 6 | 0.5 | WH/BU | 5986 | Serial Data Communication Enable | I | G96 |
| 7 | - | - | - | Not Occupied | - | - |
| 8 | 2.5 | RD/PU | 1242 | Primary Fused Battery Positive Voltage 12 | II | G96 |
| 9 | 2.5 | BK | 2550 | Ground 25 | II | G96 |
| 10 | 0.35 | WH | 6106 | High Speed GMLAN Serial Data [-] 2 | I | G96 |
| 11 | 0.35 | BU/YE | 6105 | High Speed GMLAN Serial Data [+] 2 | I | G96 |
| 12 - 15 | - | - | - | Not Occupied | - | - |
| 16 | 0.5 | RD/WH | 640 | Secondary Fused Battery Positive Voltage 6 | II | G96 |
