2020 Chevrolet Camaro SS, 2D Coupe, Standard TransFACTORY OEM SERVICE PROCEDURE

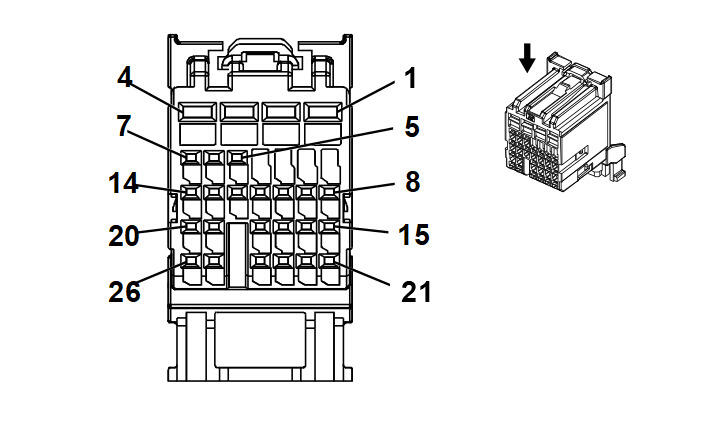

K9 Body Control Module X1
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13575578 | J-35616-35 (VT) | J-38125-553 | Not Available | Not Available | Not Available | Not Available |
| II | 13582297 | J-35616-64B (LT BU) | J-38125-215A | Not Available | Not Available | Not Available | Not Available |
| III | 13582326 | J-35616-35 (VT) | J-38125-553 | 8100-4444 | Sumitomo 22 | 2 | A |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.75 | BK | 1350 | Ground 13 | III | - |
| 2 | 1.5 | RD/BU | 2540 | Secondary Fused Battery Positive Voltage 25 | I | - |
| 3 | 1.5 | RD/GY | 2140 | Secondary Fused Battery Positive Voltage 21 | I | - |
| 4 | 0.75 | RD/BN | 2240 | Secondary Fused Battery Positive Voltage 22 | III | - |
| 5 | 0.5 | WH | 6816 | Indicator Dimming Control | II | - |
| 6 | 0.35 | WH/BR | 544 | DRL Relay Control | II | - |
| 7 | 0.35 | BK/YE | 5005 | Instrument Panel Lamp Dimmer Switch Low Reference | II | - |
| 8 | 0.35 | BN/BK | 5720 | Ignition Mode Switch Accessory LED Signal | II | - |
| 9 - 10 | - | - | - | Not Occupied | - | - |
| 11 | 0.35 | GN/BN | 306 | Headlamp Switch Off Signal | II | - |
| 12 | - | - | - | Not Occupied | - | - |
| 13 | 0.35 | BU/RD | 1688 | 5 Volt Reference 7 | II | - |
| 14 | 0.35 | BU/GY | 187 | Rear Fog Lamp Switch Signal | II | T79 |
| 15 | - | - | - | Not Occupied | - | - |
| 16 | 0.35 | WH/VT | 103 | Headlamp Switch On Signal | II | - |
| 17 | 0.35 | WH/YE | 915 | Ambient Lighting Control 1 | II | C70 |
| 18 | 0.35 | BU/VT | 5904 | Steering Column Lock Status Signal | II | N06 |
| 19 | 0.35 | BK/BN | 5360 | Brake Apply Sensor Low Reference | II | - |
| 20 | 0.35 | BU/BK | 5719 | Ignition Mode Switch Start LED Signal | II | - |
| 21 | 0.35 | GY | 728 | Security Indicator Control | II | - |
| 22 | 0.35 | GN/GY | 13 | Headlamp Switch Park Lamp Signal | II | - |
| 23 | 0.5 | VT/GN | 7558 | Front Footwell Accent Lighting Control | II | - |
| 24 | 0.35 | WH | 2501 | High Speed GMLAN Serial Data [-] 1 | II | - |
| 25 | 0.35 | BU | 2500 | High Speed GMLAN Serial Data [+] 1 | II | - |
| 26 | 0.35 | BU | 3275 | Remote Control Door Lock Receiver Receive Signal | II | - |
