2020 Chevrolet Camaro SS, 2D Coupe, Standard TransFACTORY OEM SERVICE PROCEDURE

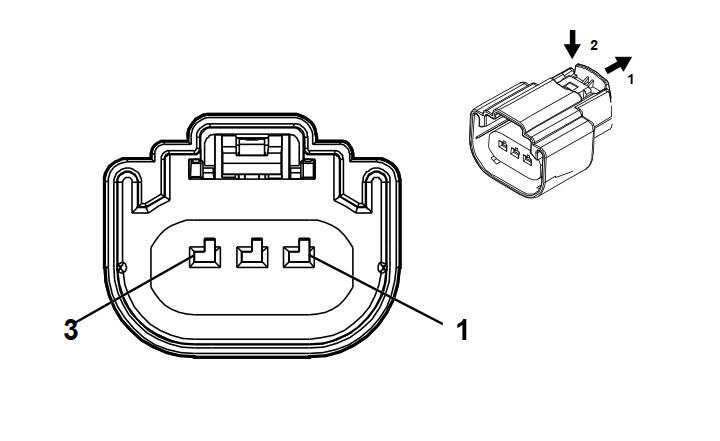

B18 Battery Current Sensor
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-14 (GN) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | BU/VT | 5076 | Current Sensor Voltage Reference | I | - |
| 2 | 0.35 | BK/VT | 5077 | Current Sensor Low Reference | I | - |
| 3 | 0.35 | WH/YE | 5075 | Current Sensor Signal | I | - |
