2020 Chevrolet Camaro SS, 2D Coupe, Standard TransFACTORY OEM SERVICE PROCEDURE
Engine Components - Right Side on Intake Manifold (LTG)

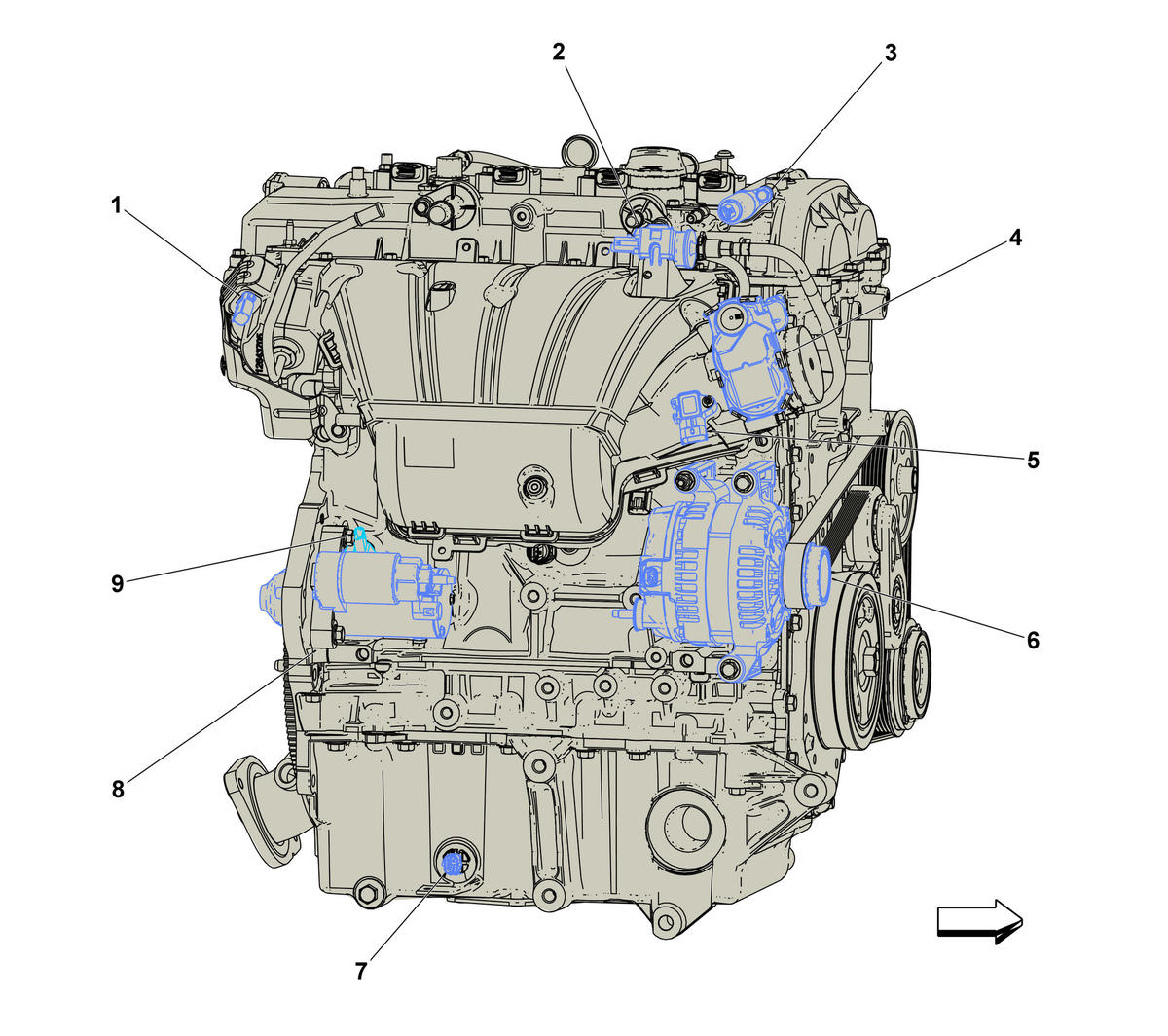

Engine Components - Right Side on Intake Manifold (LTG)
| Component Name | Callout |
|---|---|
| G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LGX/LTG) | 1 |
| Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve | 2 |
| Q6F Camshaft Position Actuator Solenoid Valve - Intake (LTG) Q6F Camshaft Position Actuator Solenoid Valve - Intake | 3 |
| Q38 Throttle Body Q38 Throttle Body | 4 |
| B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LTG) | 5 |
| G13 Generator G13 Generator X1 , or G13 Generator X2 (LGX/LTG) | 6 |
| B35 Engine Oil Level Switch B35 Engine Oil Level Switch | 7 |
| M64 Starter Motor M64 Starter Motor X1 , or M64 Starter Motor X2 (LTG) | 8 |
| B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LTG) | 9 |
