2020 Chevrolet Camaro SS, 2D Coupe, Standard TransFACTORY OEM SERVICE PROCEDURE

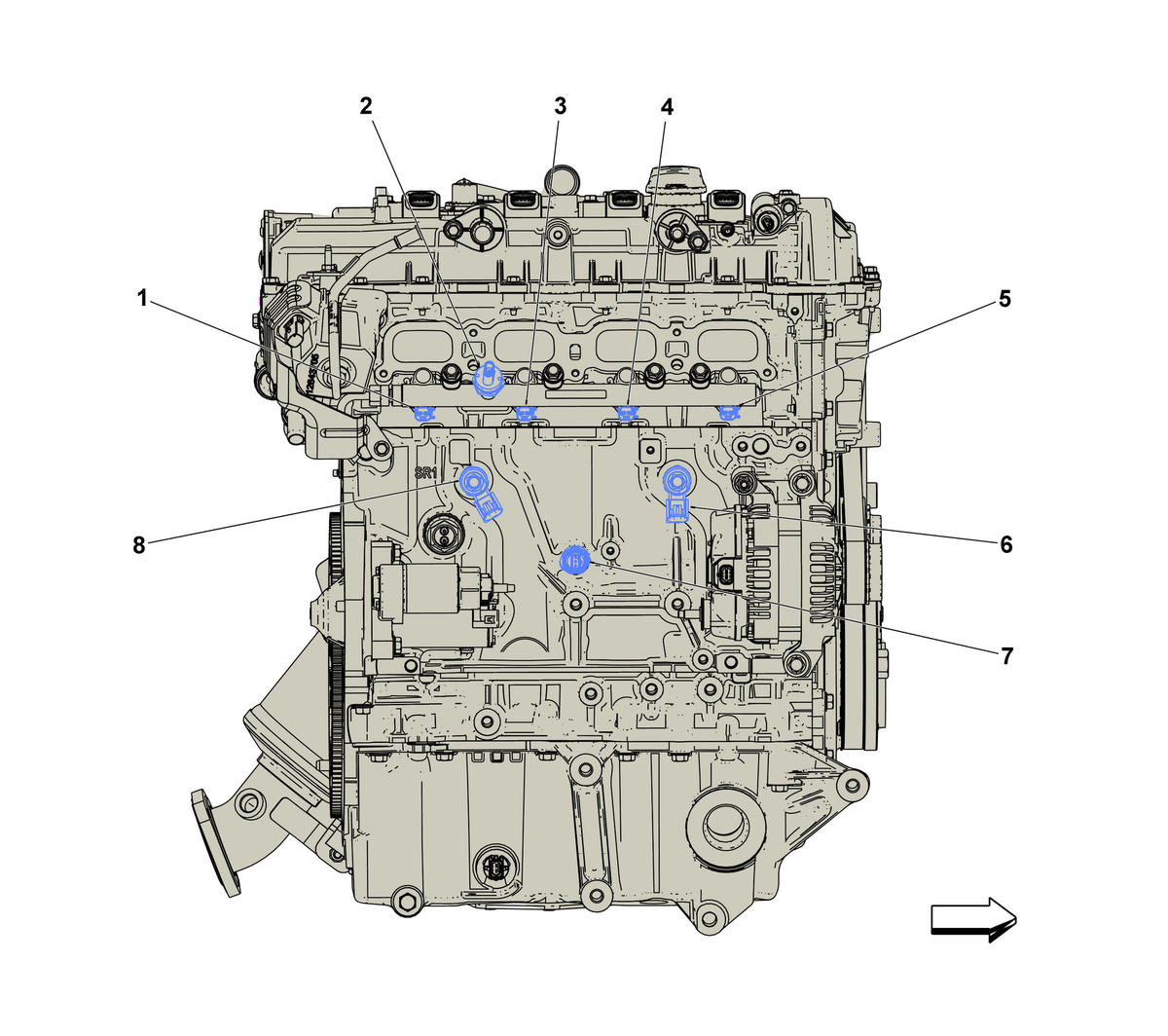

Engine Components - Right Side Behind Intake Manifold (LTG)
Engine Components - Right Side Behind Intake Manifold (LTG)
| Component Name | Callout |
|---|---|
| Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LTG) | 1 |
| B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor (LTG) | 2 |
| Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LTG) | 3 |
| Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LTG) | 4 |
| Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LTG) | 5 |
| B68A Knock Sensor 1 B68A Knock Sensor 1 | 6 |
| B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LTG) | 7 |
| B68B Knock Sensor 2 B68B Knock Sensor 2 | 8 |
