2020 Chevrolet Camaro SS, 2D Coupe, Standard TransFACTORY OEM SERVICE PROCEDURE

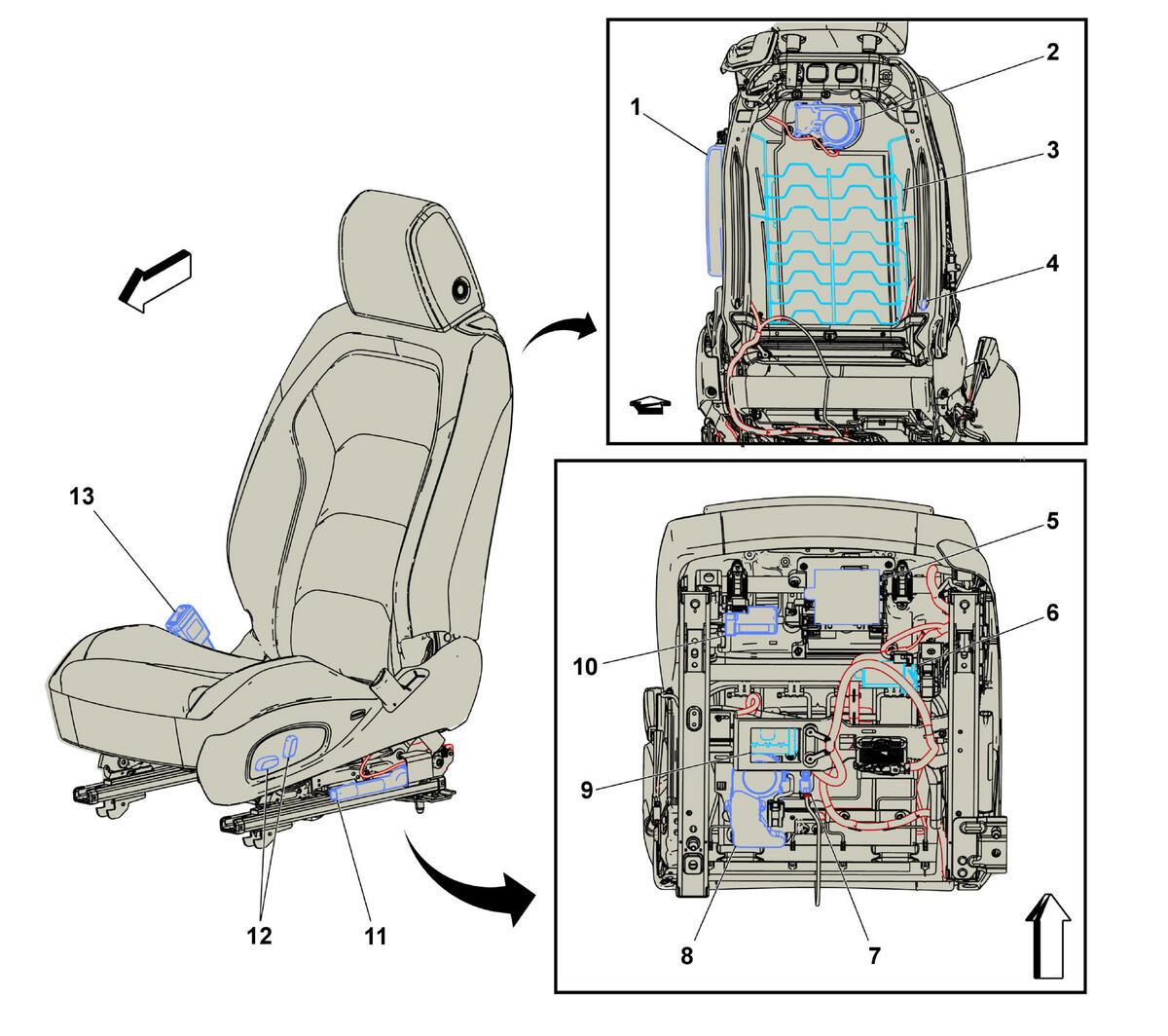

Driver Seat Components

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
F106LF Seat Side Air Bag - Left Front F106LF Seat Side Air Bag - Left Front	1
M73A Seat Blower Motor - Driver Back (KQV) M73A Seat Blower Motor - Driver Back	2
E14A Seat Heating Element - Driver Back (KA1) E14A Seat Heating Element - Driver Back	3
M56D Seat Recline Motor - Driver M56D Seat Recline Motor - Driver	4
K40D Seat Memory Control Module - Driver (A45) K40D Seat Memory Control Module - Driver X1 , or K40D Seat Memory Control Module - Driver X2 , or K40D Seat Memory Control Module - Driver X3 , or K40D Seat Memory Control Module - Driver X5 , or K40D Seat Memory Control Module - Driver X6	5
M55D Seat Rear Vertical Motor - Driver M55D Seat Rear Vertical Motor - Driver	6
E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion	7
M73C Seat Blower Motor - Driver Cushion (KQV) M73C Seat Blower Motor - Driver Cushion	8
M51D Seat Horizontal Motor - Driver M51D Seat Horizontal Motor - Driver	9
M50D Seat Front Vertical Motor - Driver M50D Seat Front Vertical Motor - Driver	10
F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver	11
S64D Seat Adjuster Switch - Driver S64D Seat Adjuster Switch - Driver	12
B153D Seat Belt Buckle - Driver	13
