2020 Chevrolet Camaro SS, 2D Coupe, Standard TransFACTORY OEM SERVICE PROCEDURE

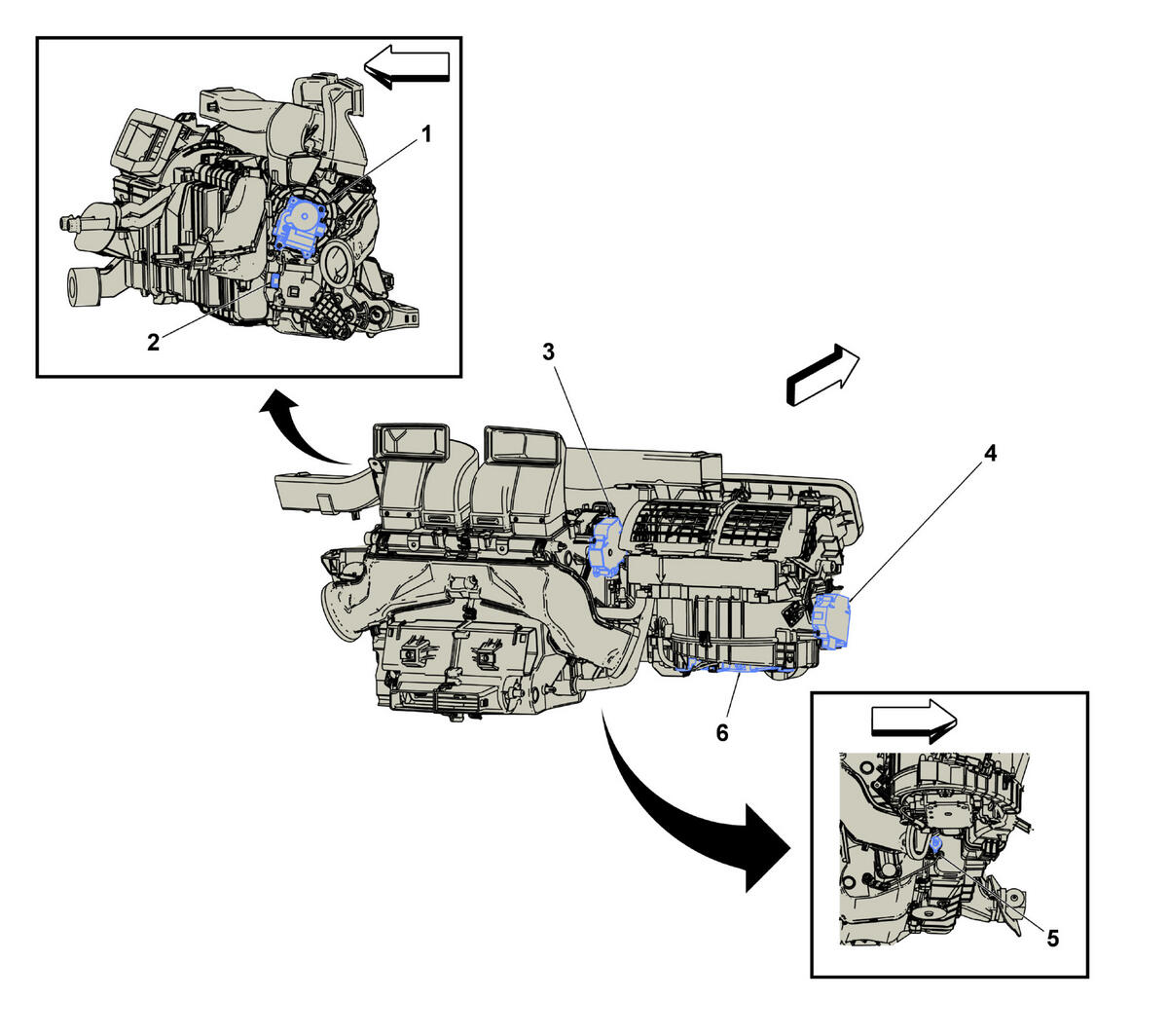

HVAC Module Components
HVAC Module Components
| Component Name | Callout |
|---|---|
| M37 Mode Door Actuator M37 Mode Door Actuator | 1 |
| M6L Air Temperature Door Actuator - Left M6L Air Temperature Door Actuator - Left | 2 |
| M6R Air Temperature Door Actuator - Right M6R Air Temperature Door Actuator - Right | 3 |
| M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator | 4 |
| B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor | 5 |
| M8 Blower Motor M8 Blower Motor | 6 |
