2020 Chevrolet Camaro SS, 2D Coupe, Standard TransFACTORY OEM SERVICE PROCEDURE
Communication Interface Module Replacement

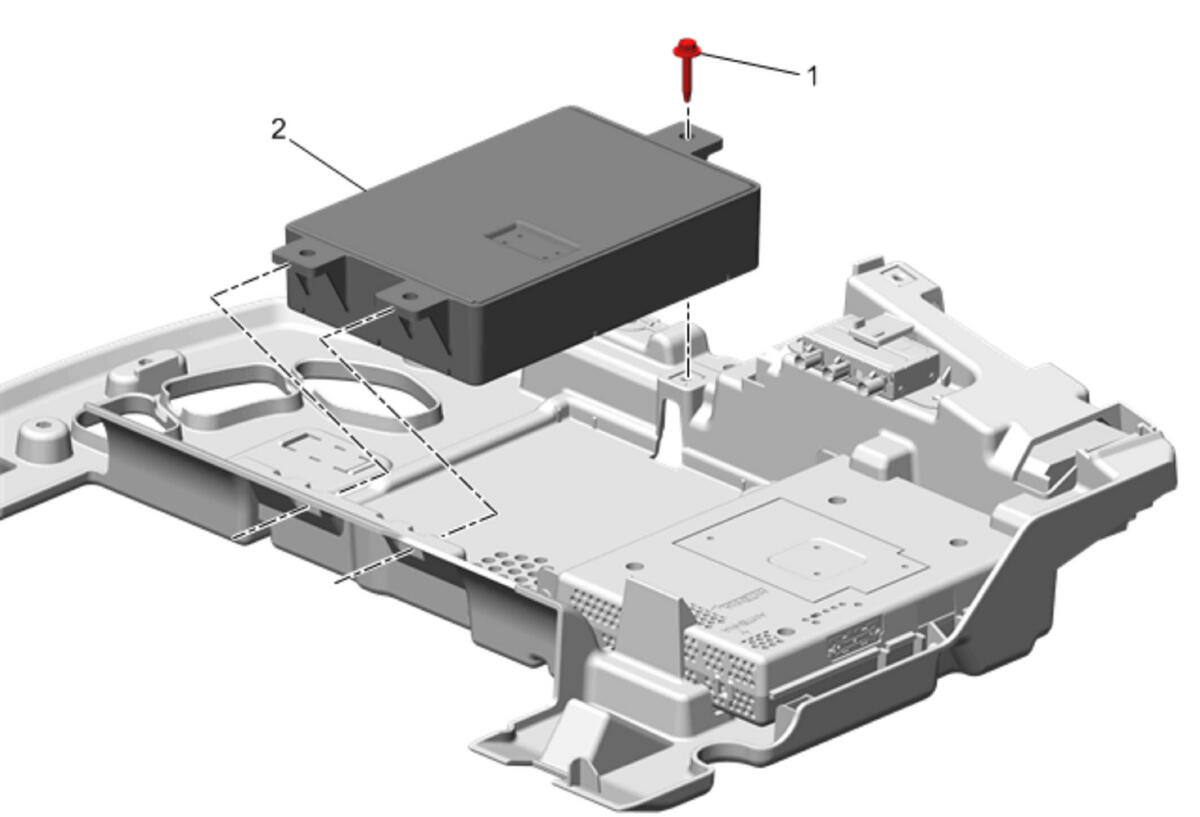

| Callout | Component Name |
|---|---|
| Preliminary Procedure Multiuse Module Bracket Replacement - Instrument Panel |
|
| 1 | Communication Interface Module Bracket Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Communication Interface Module Procedure Refer to Control Module References for programming and set up procedures, if required. |
