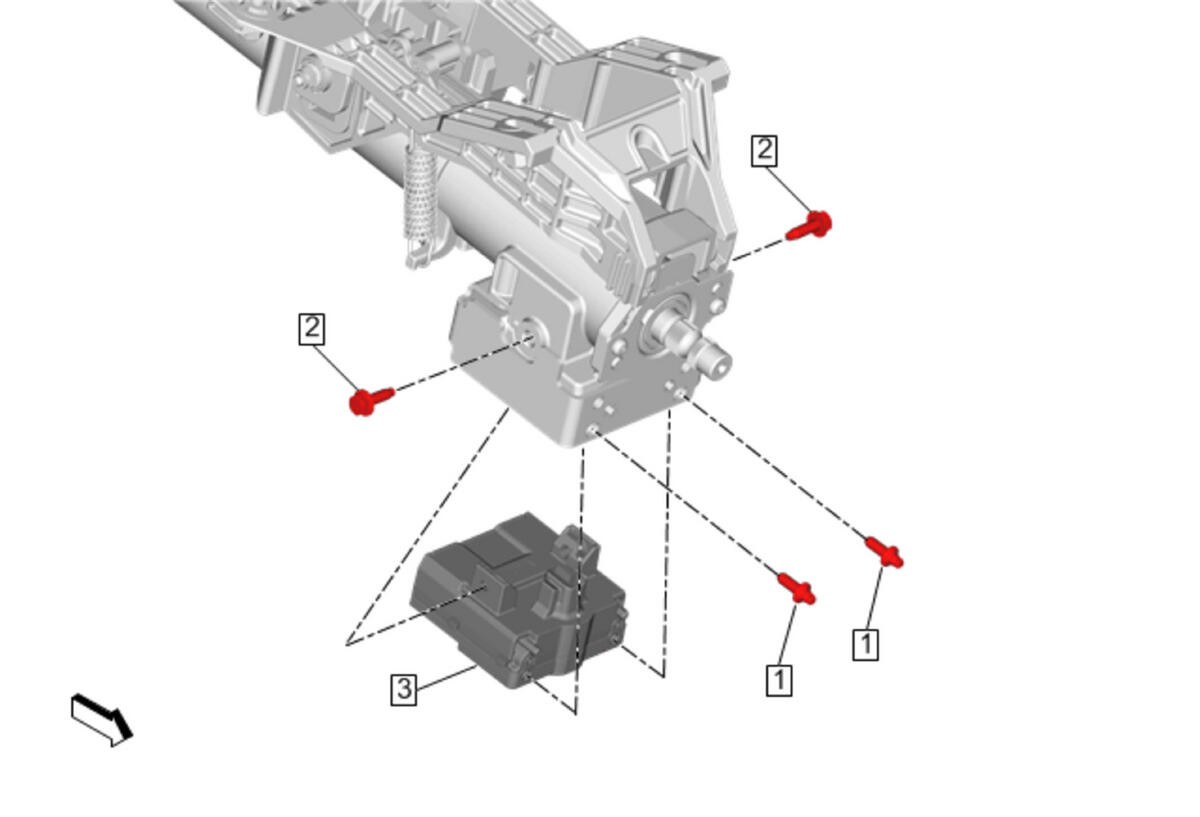

Column Lock Module Replacement
| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Steering Column Lock Control Module Bolt [2x]
CAUTION:
Refer to Fastener Caution . Procedure
NOTE:
Start ALL bolts by hand before breaking the bolt heads off or misalignment of the steering column lock control module may occur. |
| 2 | Steering Column Lock Control Module Bolt [2x] Tighten 9 N. m (80 lb in) |
| 3 | Steering Column Lock Control Module Procedure Program the steering column lock control module. Control Module References |
