2019 Chevrolet Bolt EV PremierFACTORY OEM SERVICE PROCEDURE

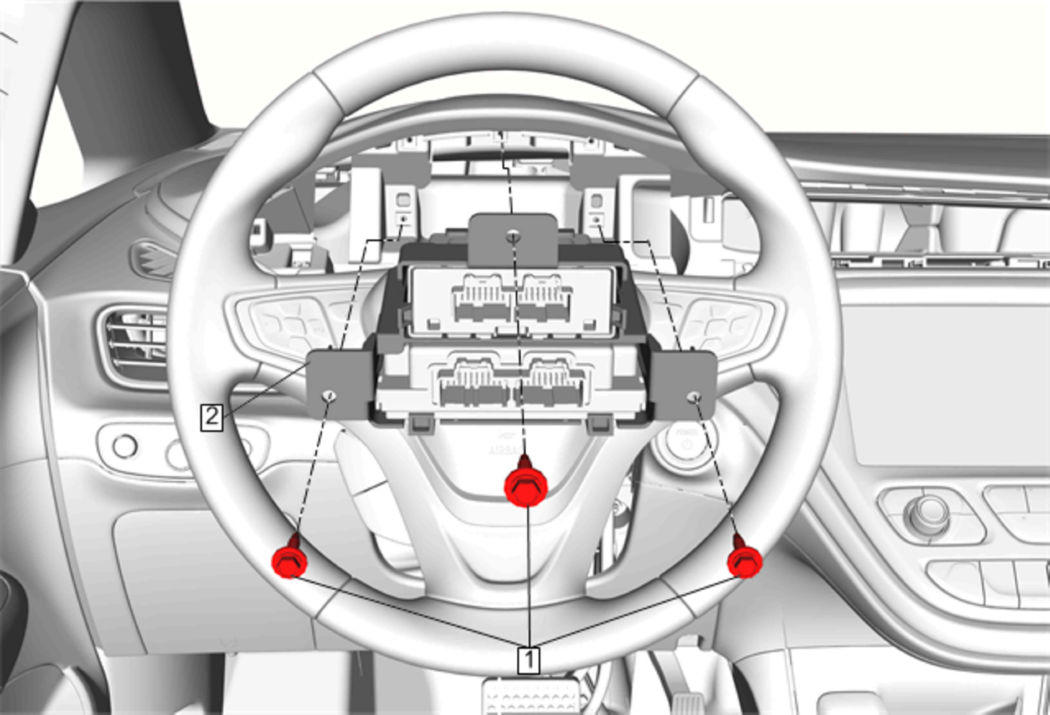

Keyless Entry Control Module Bracket Replacement
| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Keyless Entry Control Module Bracket Bolt [3x]
CAUTION:
Tighten 2.5N.m (22 lb in) |
| 2 | Keyless Entry Control Module Bracket Procedure Transfer keyless entry control module and serial data gateway module as necessary. |
