2018 Chevrolet Tahoe SSV, Gas/EthanolFACTORY OEM SERVICE PROCEDURE
K85 Passenger Presence Module

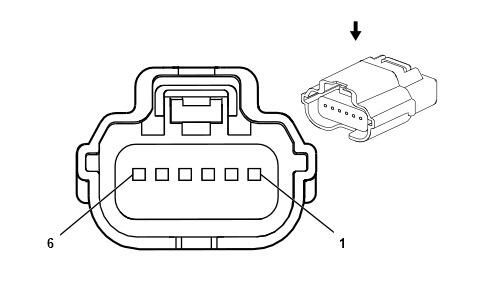

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-64B (LT BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | RD/GY | 4440 | Battery Positive Voltage | I | - |
| 2 | 0.5 | GN | 5060 | Low Speed GMLAN Serial Data | I | - |
| 3 | - | - | - | Not Occupied | - | - |
| 4 | 0.35 | BK/WH | 2751 | Signal Ground | I | - |
| 5 | 0.35 | BU/RD | 5612 | Passenger Seat Belt Tension Sensor Low Reference | I | - |
| 6 | 0.35 | VT/OG | 5611 | Passenger Seat Belt Tension Sensor Signal | I | - |
