2018 Chevrolet Tahoe SSV, Gas/EthanolFACTORY OEM SERVICE PROCEDURE

K124 Active Safety Control Module X1

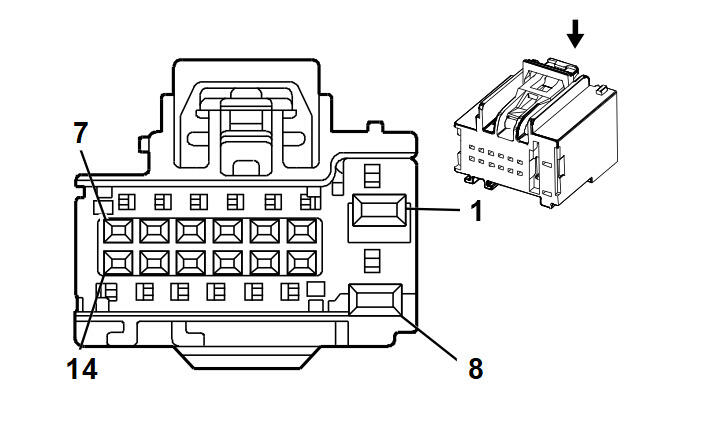

GM1664602
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13601512
  • Service Connector: 89047362
  • Description: 14-Way F 0.64, 1.5 Series (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575735 J-35616-14 (GN) J-38125-553 12191812 Delphi 19 C A
II 13575735 J-35616-14 (GN) J-38125-553 12191812 Delphi 19 E C
III 13575742 J-35616-64B (LT BU) J-38125-215A SAIT-A03T-M064 Yazaki 14 P P
Pin Size Color Circuit Function Terminal Type ID Option
1 0.75 RD/GN 3140 Battery Positive Voltage I -
2 0.35 GN/BN 5852 Rear Park Assist LED Disable Signal III -
3 0.35 WH 3152 Lane Departure Warning Indicator Control III -
4 - 5 - - - Not Occupied - -
6 0.5 BU/GY 3935 High Speed GMLAN Serial Data (+) 8 III -
7 0.5 BU/GY 3935 High Speed GMLAN Serial Data (+) 8 III -
8 0.5 BK/WH 2751 Signal Ground II -
9 0.35 GY/VT 3808 Front Object Sensor Control 2 III -
10 0.35 BN/VT 3809 Front Object Sensor Control 1 III -
11 0.35 GY/GN 2555 Rear Park Assist Disable Signal III -
12 0.35 WH/BU 5986 Serial Data Communication Enable III -
13 0.5 WH/GY 3936 High Speed GMLAN Serial Data (-) 8 III -
14 0.5 WH/GY 3936 High Speed GMLAN Serial Data (-) 8 III -
