2018 Chevrolet Tahoe SSV, Gas/EthanolFACTORY OEM SERVICE PROCEDURE
K13 DVD Control Module X5 (AYE)

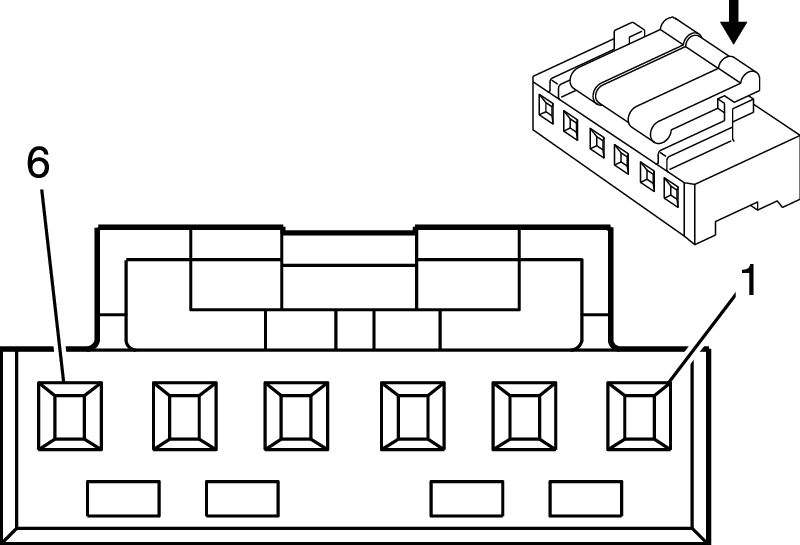

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | No Tool Required | J-38125-215A | - | - | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | - | BK | - | Audio/Video Common B (-) | I | - |
| 2 | - | YE | - | DVD Video Signal B (+) | I | - |
| 3 | - | RD | - | Right Audio Signal B (+) | I | - |
| 4 | - | WH | - | Left Audio Signal B (+) | I | - |
| 5 | - | BK | - | I2C Clock Signal | I | - |
| 6 | - | RD | - | I2C Data | I | - |
