Human Machine Interface Control Module Replacement (Chevrolet/GMC)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Chevrolet/GMC) . |
|

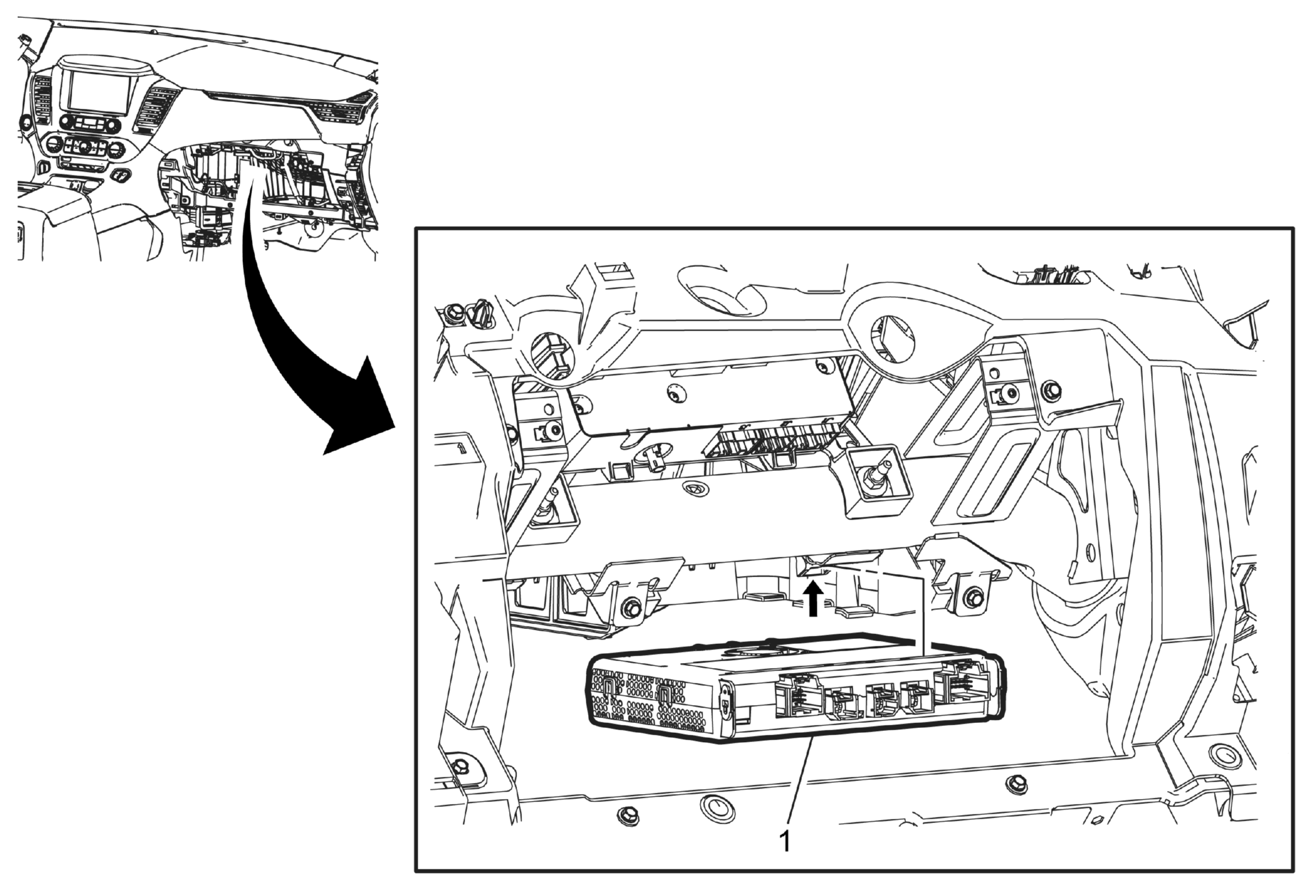

| 1 | Human Machine Interface Control Module Procedure
NOTE:
Ensure the module is installed with the parts ID tag towards the rear of the vehicle, and the back of the human machine interface control module towards the front of the vehicle. |
