2018 Chevrolet Tahoe SSV, Gas/EthanolFACTORY OEM SERVICE PROCEDURE
Human Machine Interface Control Module Bypass Module Replacement (Chevrolet/GMC Without DCK Or D07)

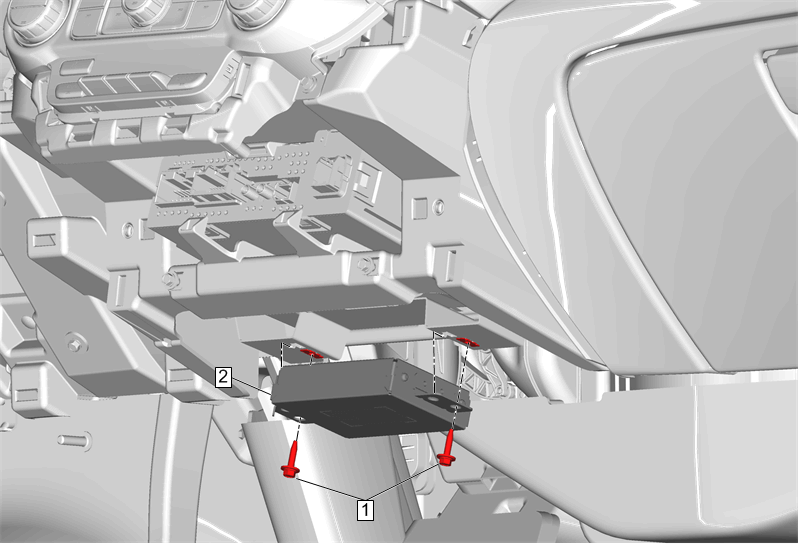

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Instrument Panel Center Compartment. Refer to Instrument Panel Center Compartment Replacement (Chevrolet/GMC) |
|
| 1 | Human Machine Interface Control Module Bypass Module Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 2 | Human Machine Interface Control Module Bypass Module Procedure Disconnect the electrical connectors. |
