2018 Chevrolet Suburban 3500 HD LSFACTORY OEM SERVICE PROCEDURE

Installation Procedure

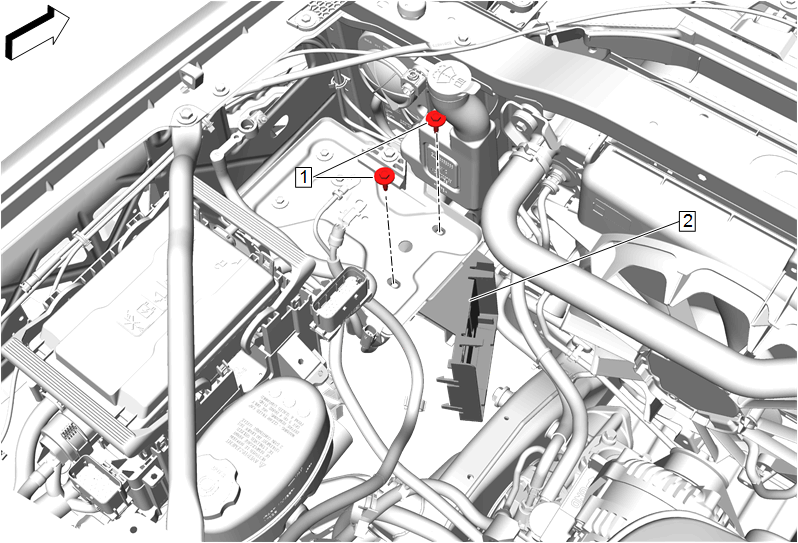

Fig 1: Battery Tray Bolts And Engine Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Install Engine Control Module Bracket (2)

CAUTION:

Refer to Fastener Caution

Install and tighten Battery Tray Bolts (1) (Qty: 2) to 9 N.m (80 lb in)

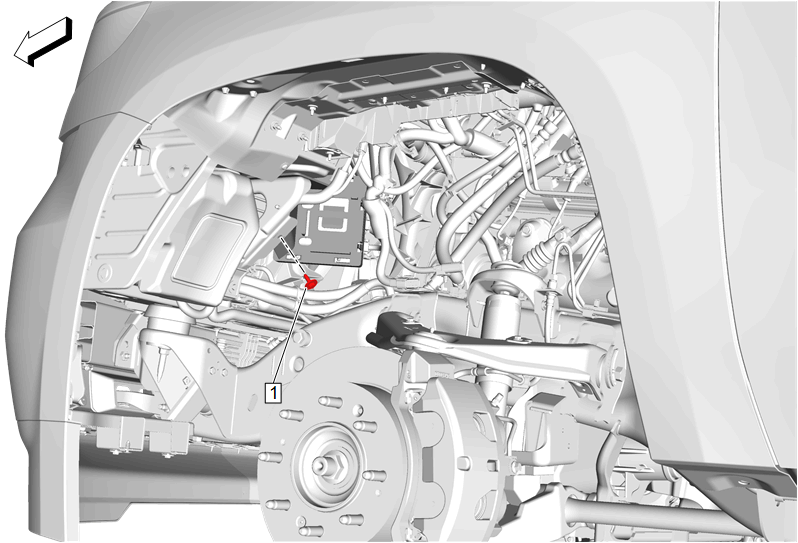

Fig 2: Engine Control Module Bracket Bolt

Courtesy of GENERAL MOTORS COMPANY

Install and tighten Engine Control Module Bracket Bolt (1) to 9 N.m (80 lb in)
Install the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Left Side (Chevrolet)
Install Engine Control Module. Refer to Engine Control Module Replacement
Install Auxiliary Battery. Refer to Auxiliary Battery Replacement (9C1)
