Installation Procedure

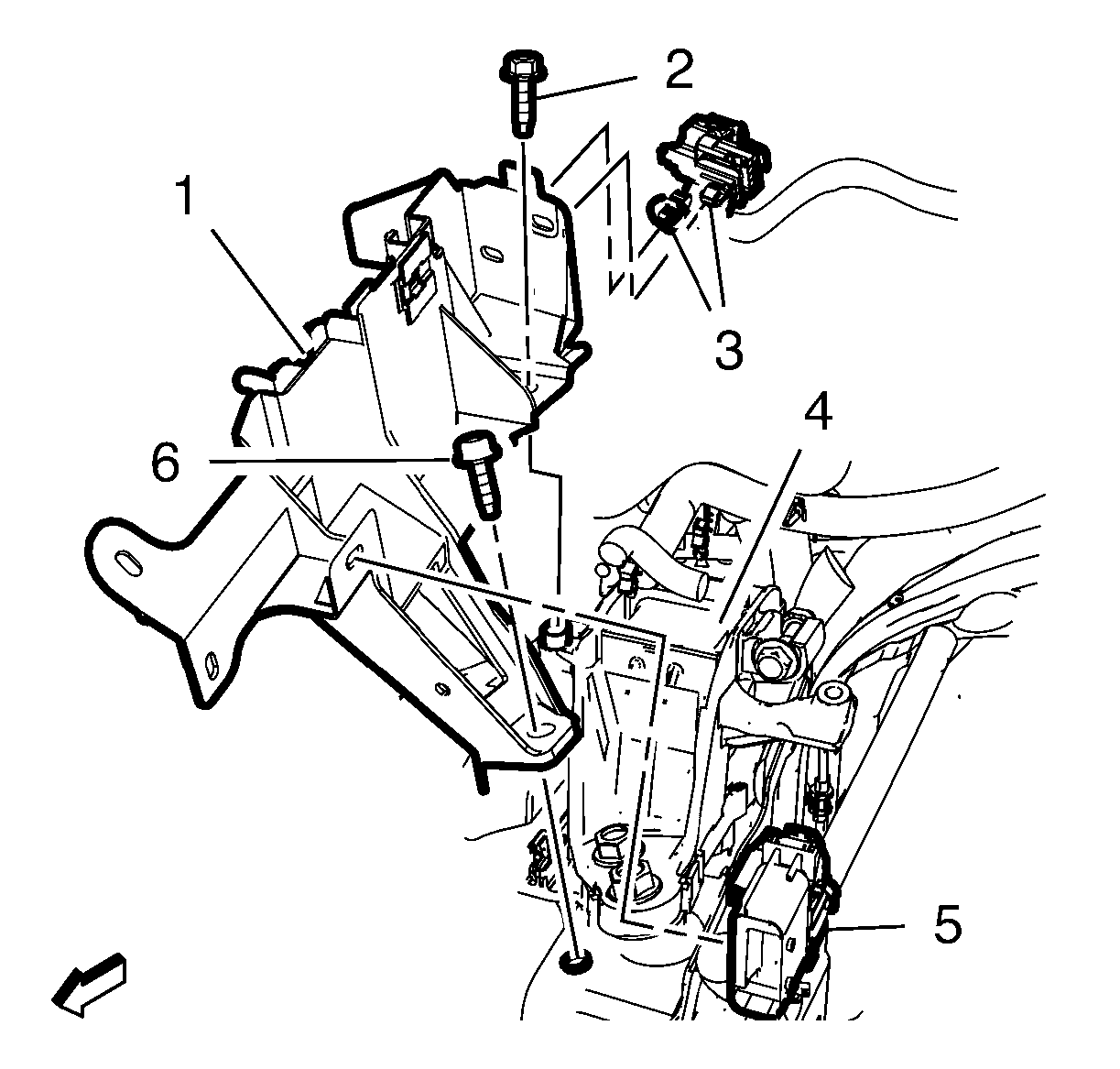

Install the engine control module and electronic brake control module bracket (1) to the transmission mount (4).
- Install the 2 engine control module and electronic brake control module bracket bolts (2, 6) and tighten to 12 N.m (106 lb in).
- Clip in the body wiring harness connector (5).

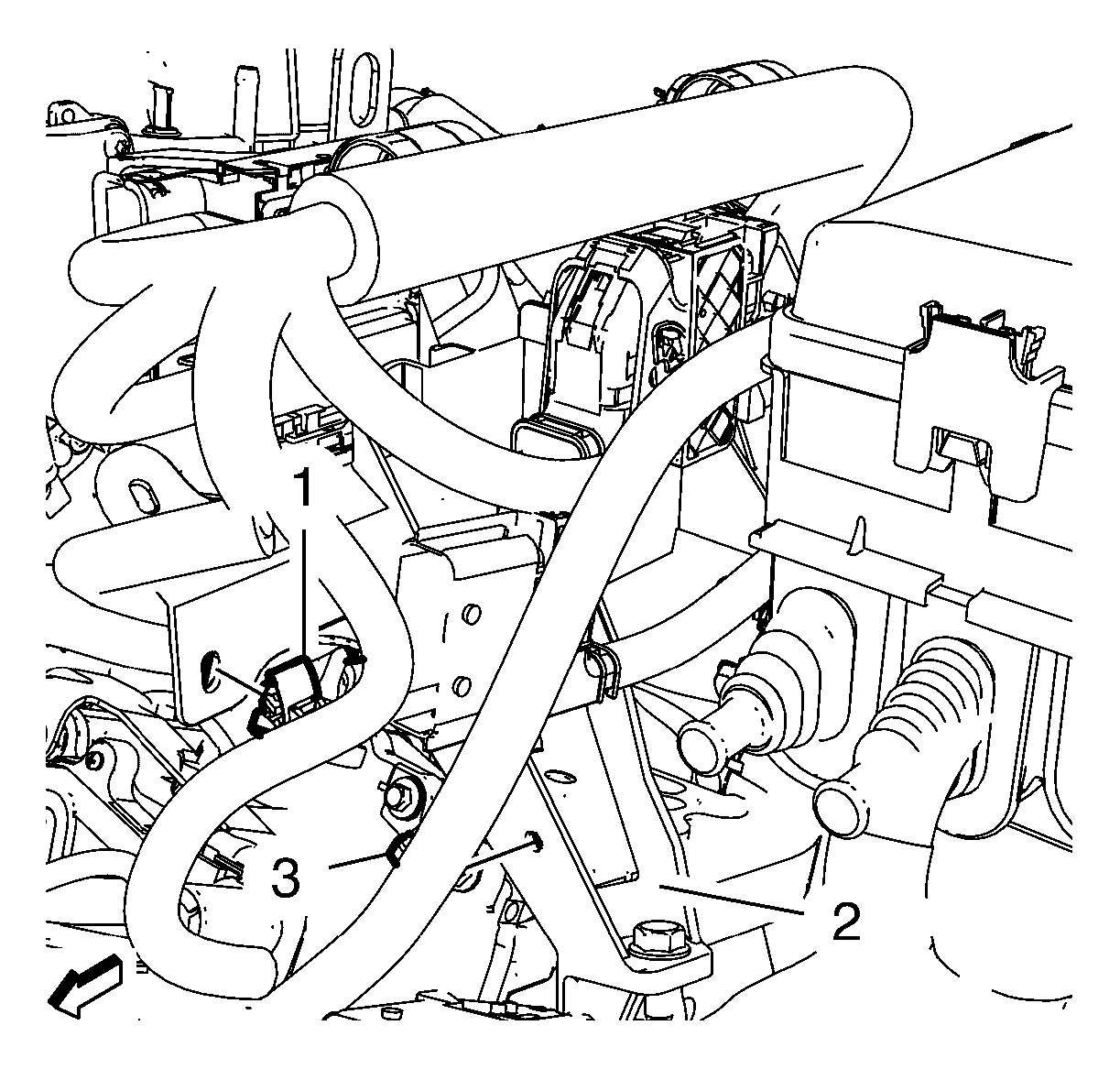

- Body Wiring Harness(3) - Install[2x]
- Clip in the engine wiring harness (1) to the engine control module and electronic brake control module bracket (3).
- Clip in battery positive and negative cable (3) from the engine control module and electronic brake control module bracket (1).

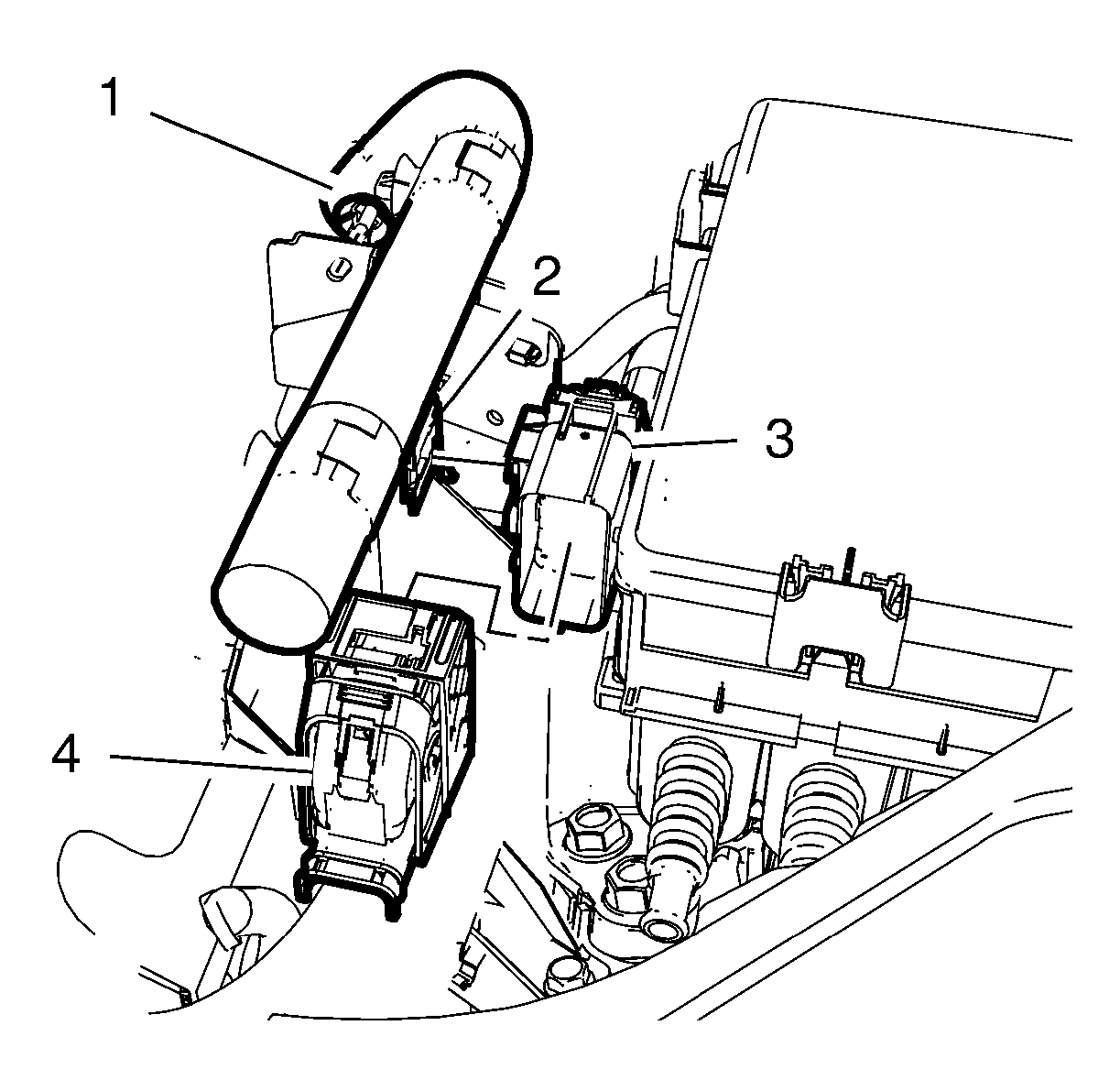

Engine Wiring Harness(1) - Install
- Connect the engine wiring harness connector (4) to the body wiring harness connector (3).
- Clip in the body wiring harness connector (3) to the engine control module and electronic brake control module bracket (2)
- Transmission Control Module Bracket - Install - Transmission Control Module Bracket Replacement
- Engine Control Module Bracket - Install - Engine Control Module Bracket Replacement
Refer to Fastener Caution .
