2016 Chevrolet Volt PremierFACTORY OEM SERVICE PROCEDURE

Fuel Pump Power Control Module Replacement

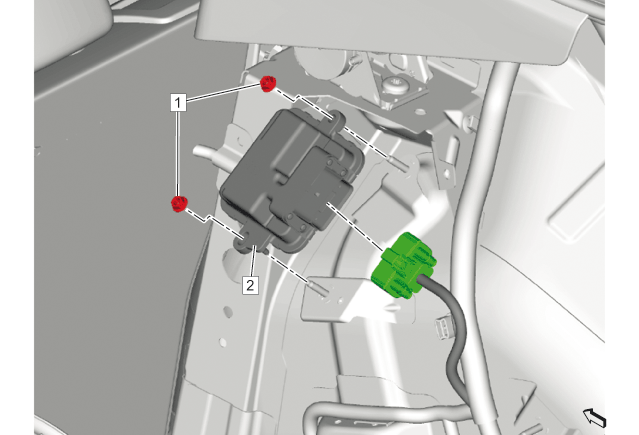

Fig 1: Fuel Pump Power Control Module
GM4091069Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Refer to Quarter Lower Rear Trim Panel Replacement (Left Side)Quarter Lower Rear Trim Panel Replacement (Right Side)
1 Fuel Pump Power Control Module Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution


Tighten
9 N.m (80 lb in)
2 Fuel Pump Power Control Module

Procedure

  1. Disconnect the electrical connector.
  2. When the replacement is completed, use a scan tool to perform the appropriate reset functions. Refer to Control Module References .
