Communication Interface Module Bracket Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

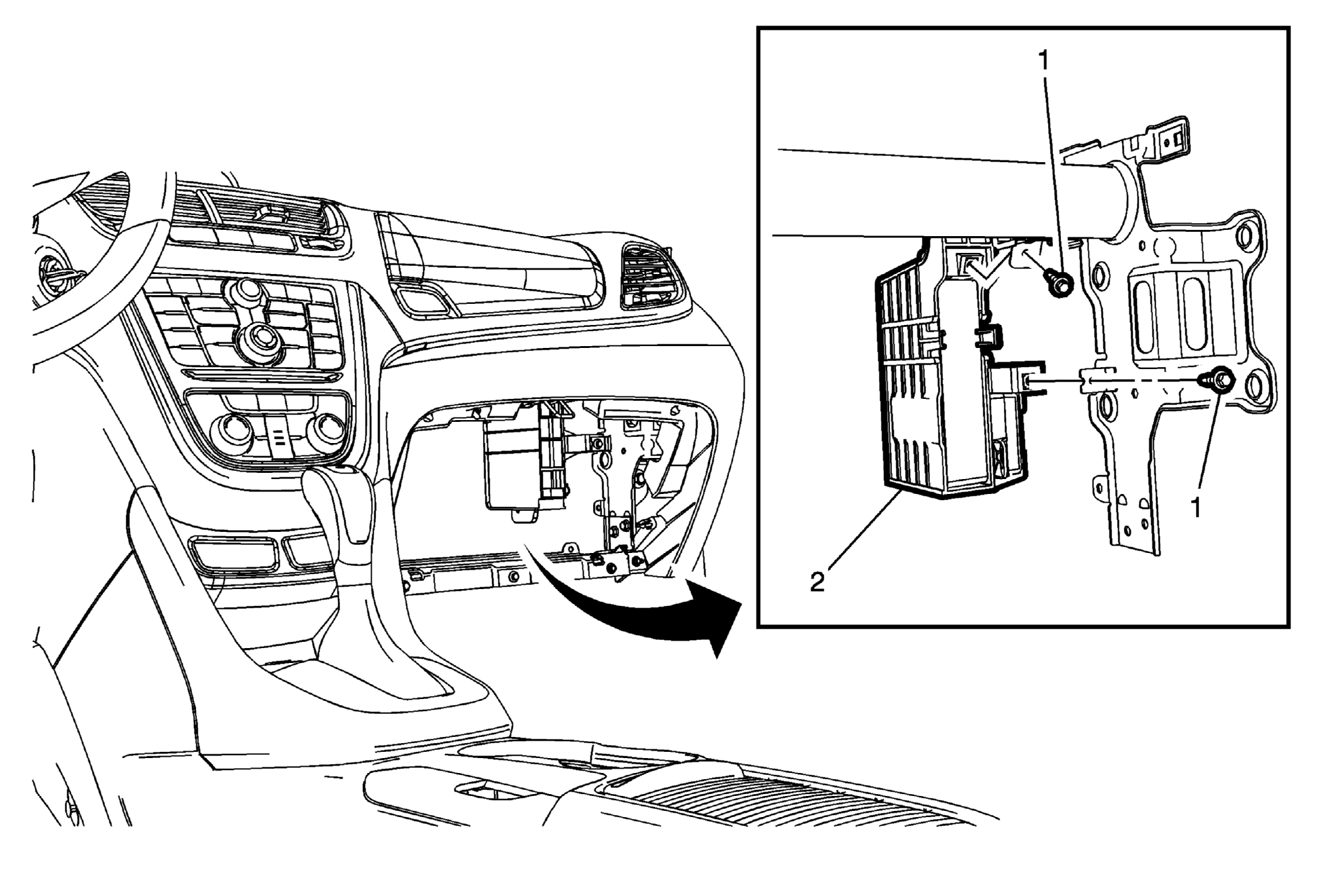

Fig 1: Communication Interface Module Bracket (Encore)
GM2885139Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
  2. Remove the instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement .
  3. Remove the floor auxiliary mat lower retainer. Refer to Floor Auxiliary Mat Lower Retainer Replacement (Encore) .
  4. Remove the instrument panel lower airbag - passenger side. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side (AYF) .
1 Communication Interface Module Bracket Bolts (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Communication Interface Module Bracket

Procedure

  1. Disconnect the electrical connectors.
  2. Transfer components as necessary.
  3. The top of the bracket has 2 locking tabs on an arm that goes above the instrument panel tie bar, lift the arm up and out of the locking holes to release the bracket.
