2016 Chevrolet Suburban 3500 HD LSFACTORY OEM SERVICE PROCEDURE
Remote Control Door Lock Receiver Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

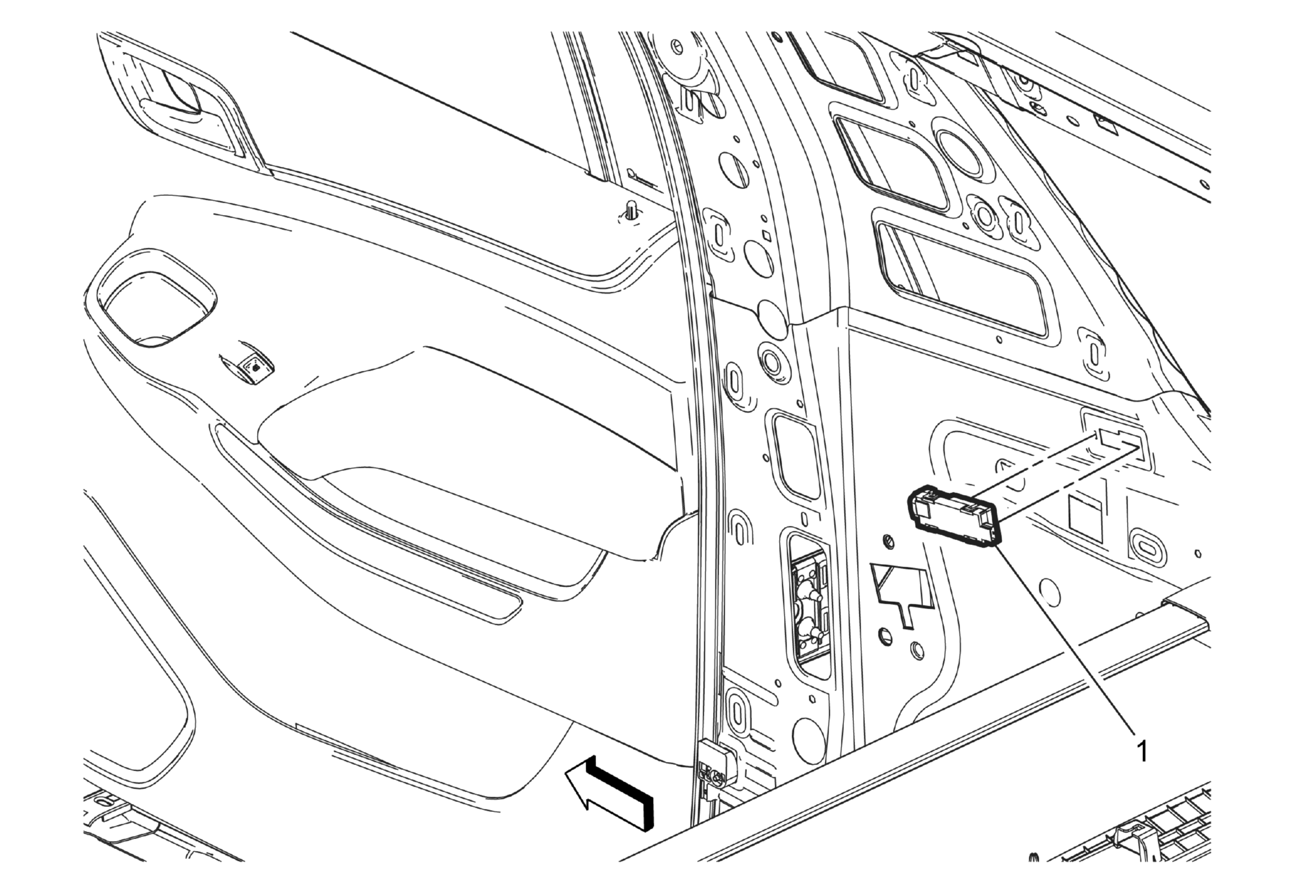

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the quarter lower rear trim panel - right side. Refer to Quarter Lower Rear Trim Panel Replacement (Left Side, Standard Wheelbase)Quarter Lower Rear Trim Panel Replacement (Right Side, Standard Wheelbase)Quarter Lower Rear Trim Panel Replacement (Left Side, Extended Wheelbase)Quarter Lower Rear Trim Panel Replacement (Right Side, Extended Wheelbase) . |
|
| 1 | Remote Control Door Lock Receiver Procedure
|
