2016 Chevrolet Suburban 3500 HD LSFACTORY OEM SERVICE PROCEDURE
Body Control Module Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

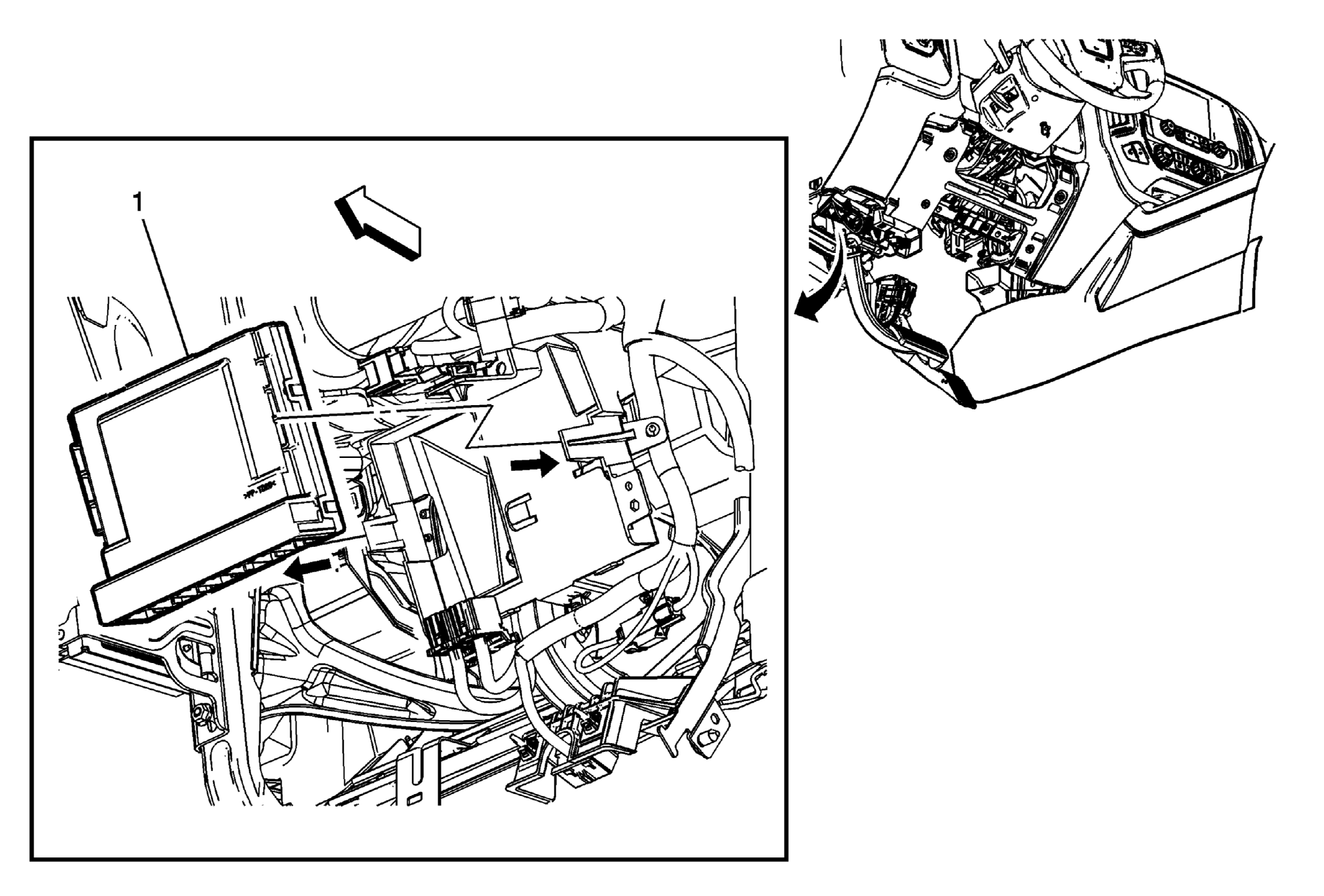

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Chevrolet / GMC)Instrument Panel Knee Bolster Replacement (Cadillac) . |
|
| 1 | Body Control Module Procedure
|
