2016 Chevrolet Suburban 3500 HD LSFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Place the ignition switch in the OFF position.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Disconnect the trailer brake power control module electrical connector.

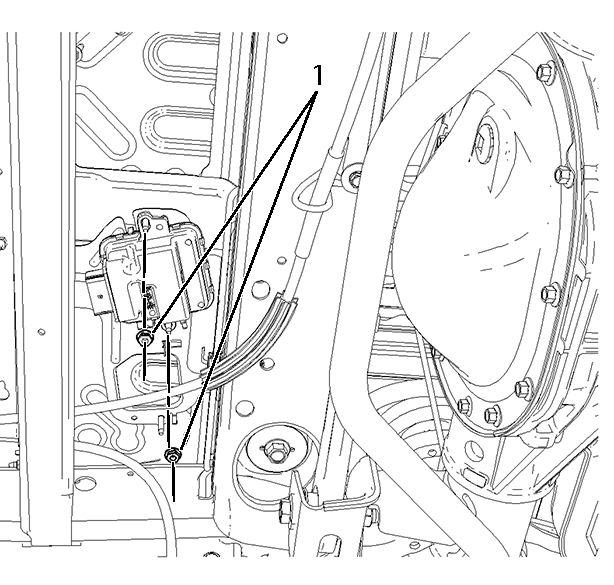

- Remove the trailer brake power control module nuts (1).

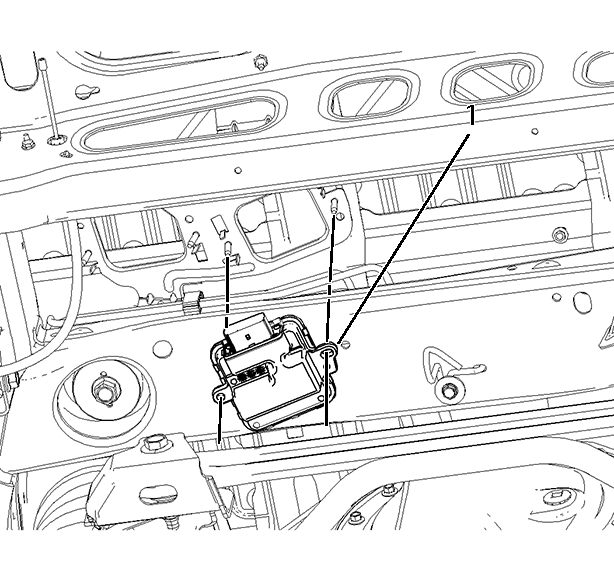

- Remove the trailer brake power control module (1) from the bracket.
