Installation Procedure

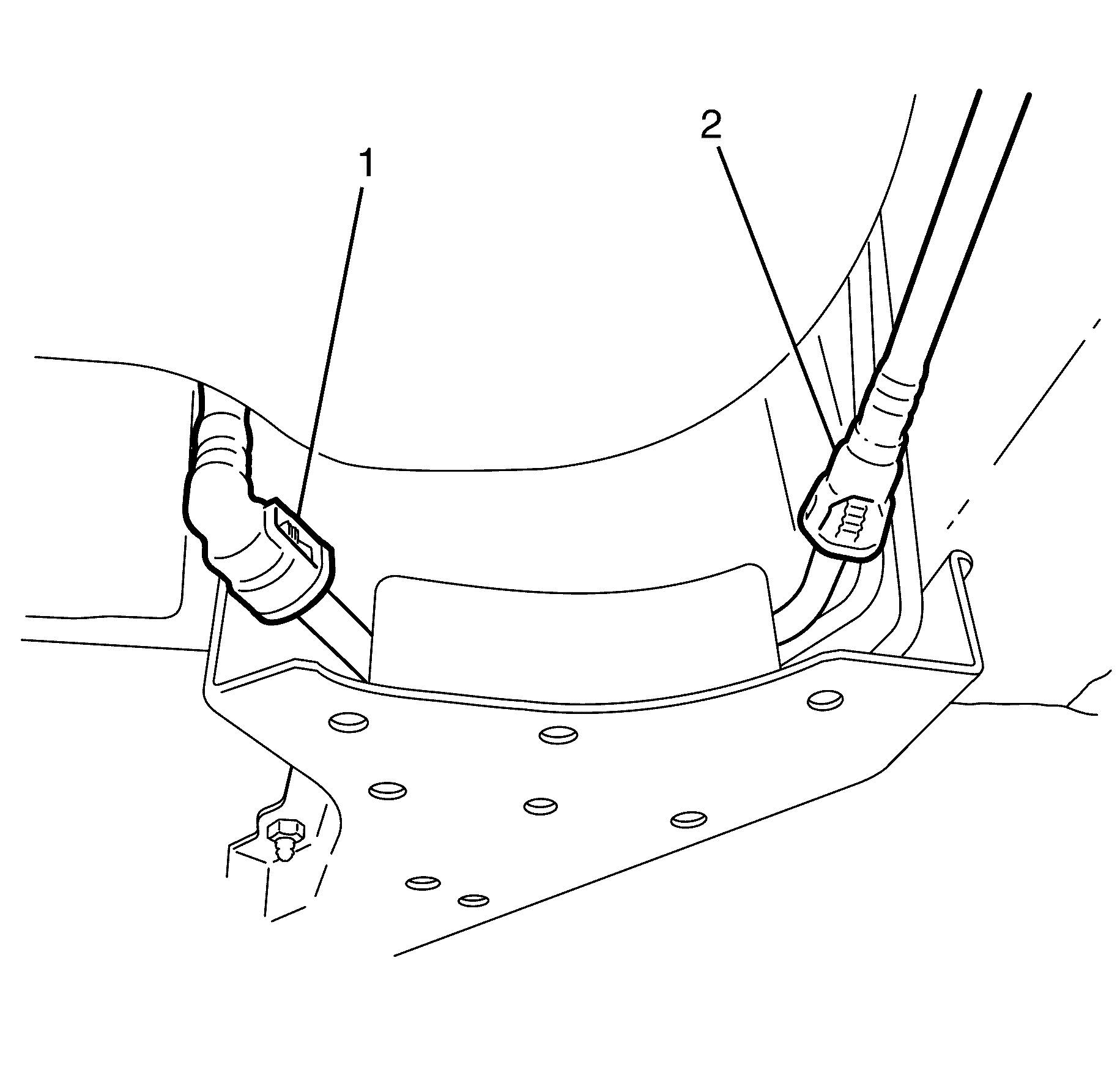

- Manoeuvre and install the fuel pipe (4) to the vehicle.

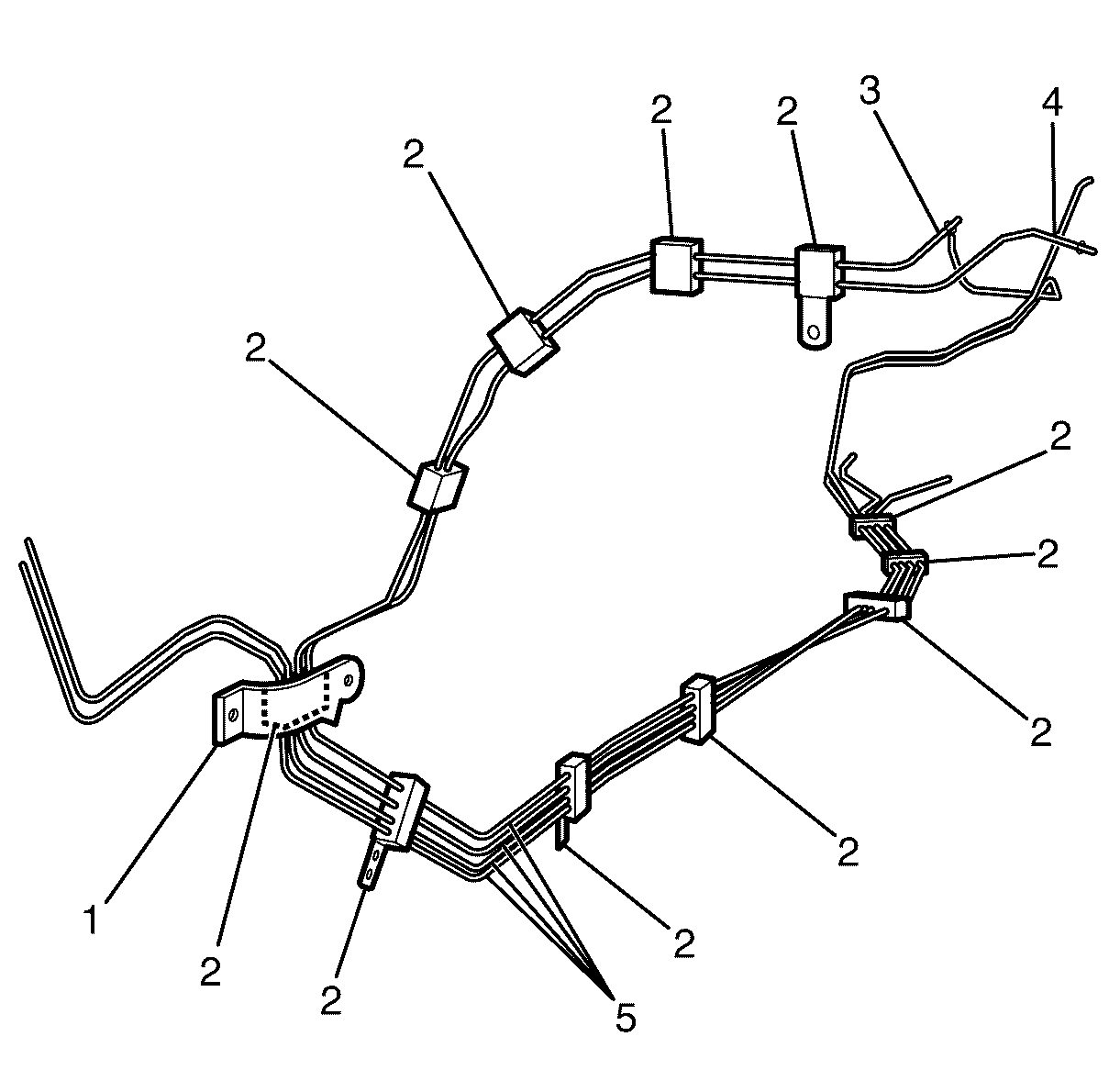

- Install all the fuel/brake pipe retainers (2) to the fuel/brake pipes assembly (5).
- Install the front fuel/brake pipe assembly protection plate (1) to the vehicle.
- Install the rear fuel/brake pipe assembly stone guard to the vehicle.

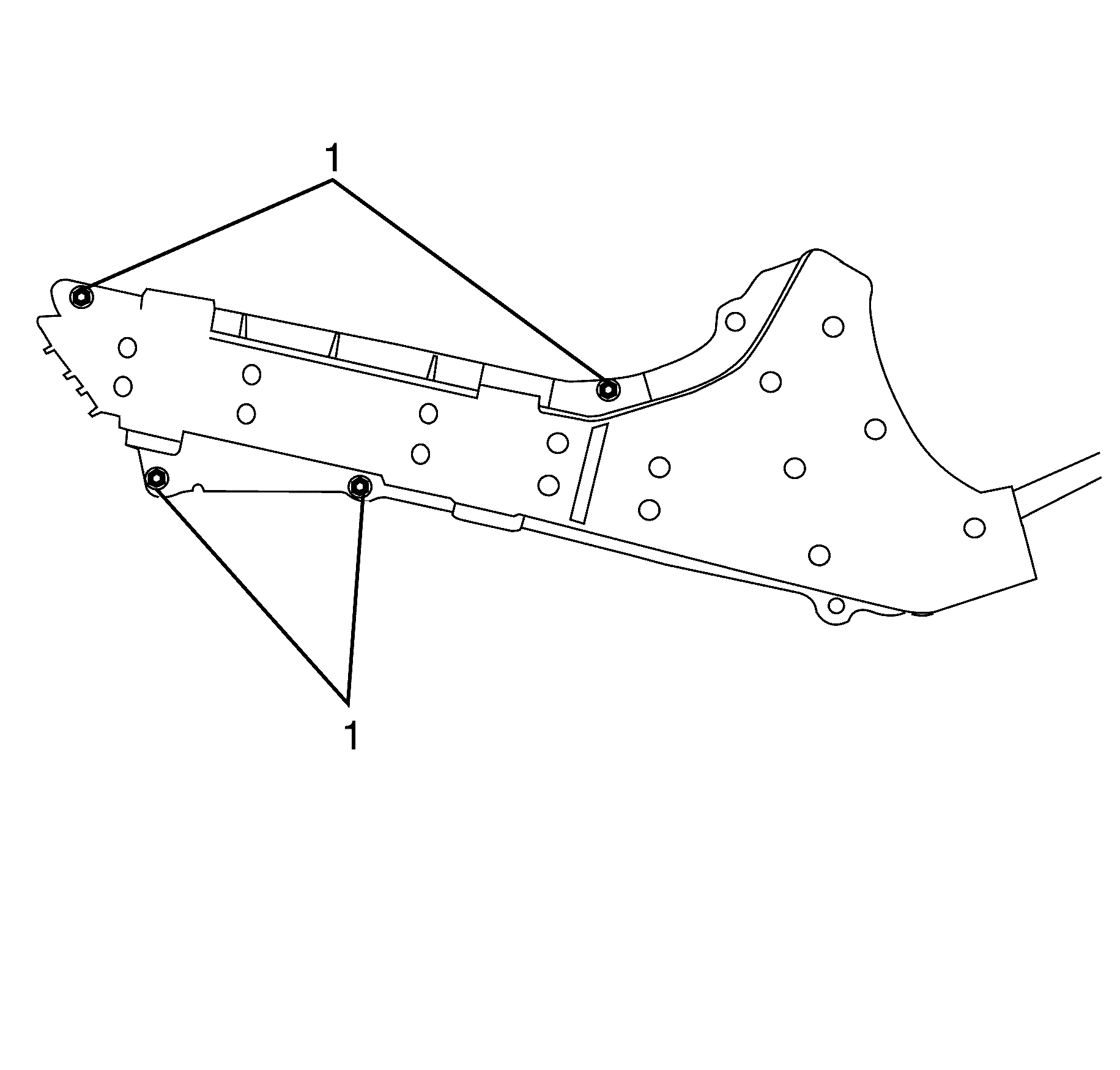

- Install the rear fuel/brake pipe assembly stone guard retaining nuts (1) and tighten to 4 N.m (35 lb in).
Observe the marked positions for the fuel/brake pipe retainers (2) when installing the fuel/brake pipe retainers (2) to the fuel/brake pipe assembly (5).
Refer to Fastener Caution .
