Removal Procedure
- Disconnect the battery ground cable from the battery. Refer to Battery Negative Cable Disconnection and Connection .
- Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

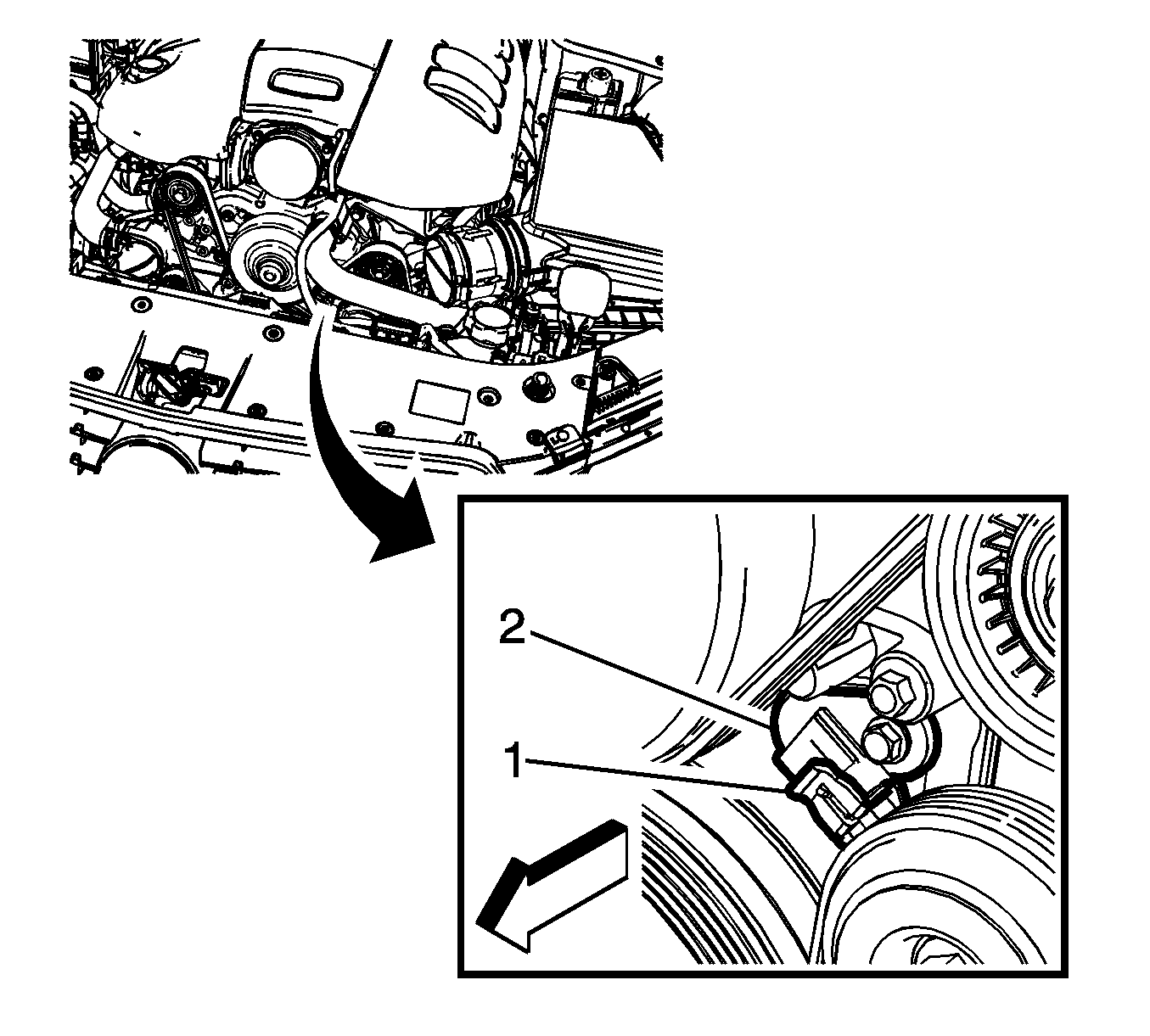

- Disconnect the camshaft position (CMP) sensor electrical connector (1).

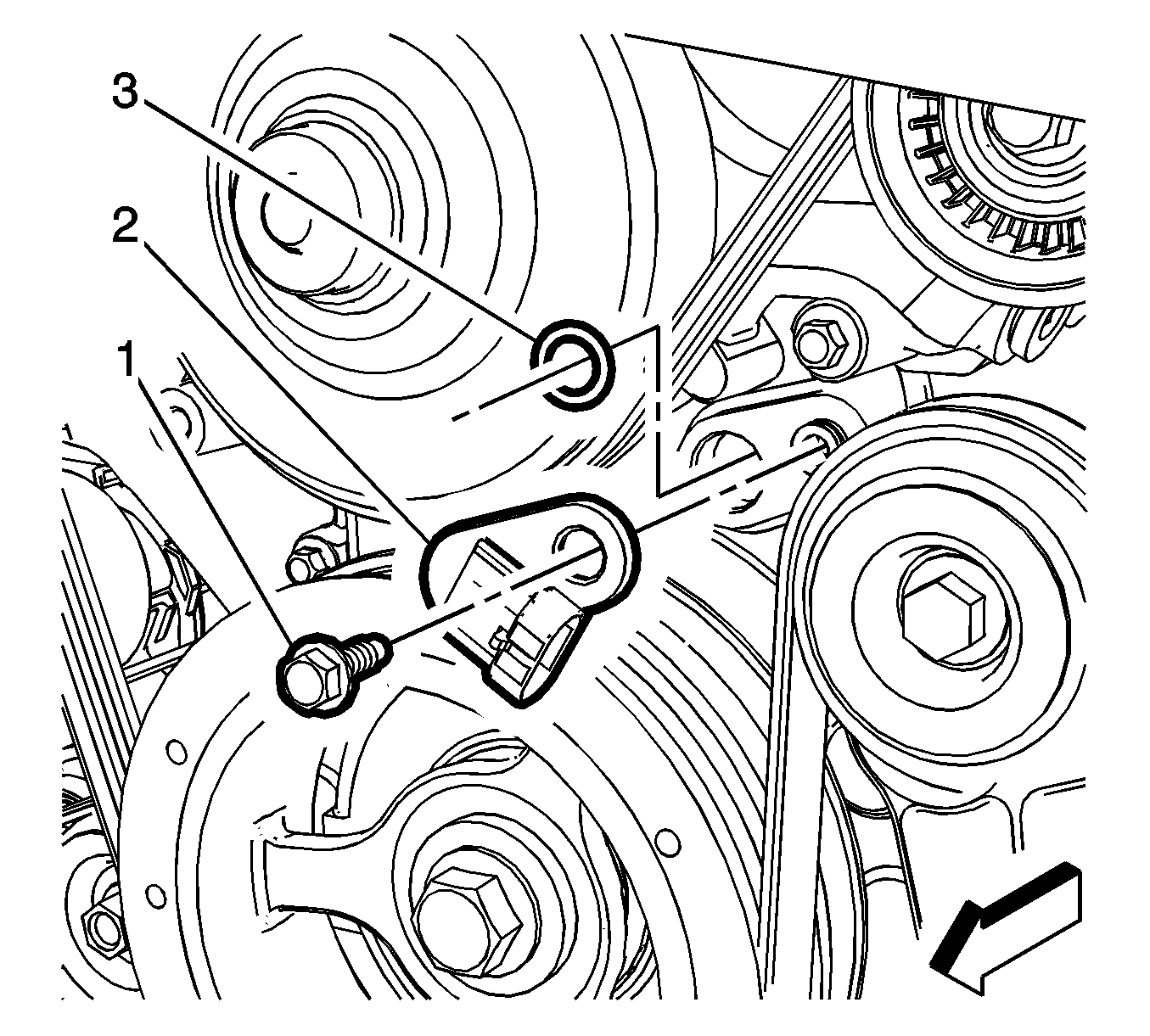

- Remove the CMP sensor to engine front cover retaining bolt (1).
- Remove the CMP sensor (2) from the engine front cover.
- Remove and DISCARD the CMP sensor O-ring (3).
Refer to Battery Disconnect Warning .
