Right Front of Engine Components

Items
1. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor
2. Q17H Fuel Injector 8 Q17H Fuel Injector 8
3. Q17F Fuel Injector 6 Q17F Fuel Injector 6
4. Q17D Fuel Injector 4 Q17D Fuel Injector 4
5. Q17B Fuel Injector 2 Q17B Fuel Injector 2
6. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor
7. Q38 Throttle Body Q38 Throttle Body
8. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve
9. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch
10. G1 A/C Compressor G1 A/C Compressor
11. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
12. B68B Knock Sensor 2 B68B Knock Sensor 2
13. B35C Engine Oil Level and Temperature Sensor B35C Engine Oil Level and Temperature Sensor
14. M64 Starter Motor M64 Starter Motor M64 Starter Motor X2
15. B52E Heated Oxygen Sensor - Bank 2 Sensor 1 B52E Heated Oxygen Sensor - Bank 2 Sensor 1
16. B52F Heated Oxygen Sensor - Bank 2 Sensor 2 B52F Heated Oxygen Sensor - Bank 2 Sensor 2

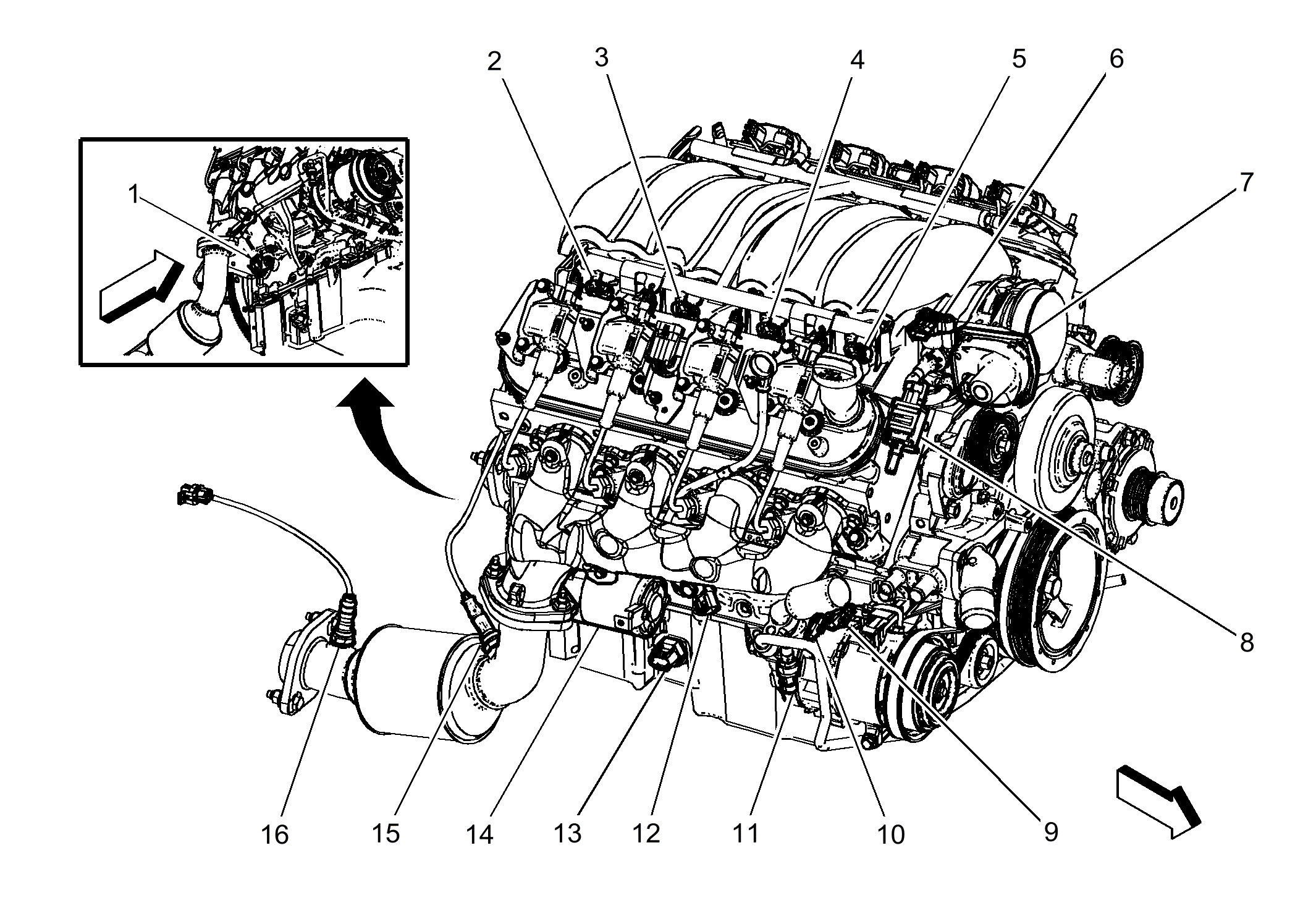

Fig 1: Right Front of Engine Components

Courtesy of GENERAL MOTORS COMPANY
