2016 Chevrolet SS Automatic TransFACTORY OEM SERVICE PROCEDURE
Front Fender Components

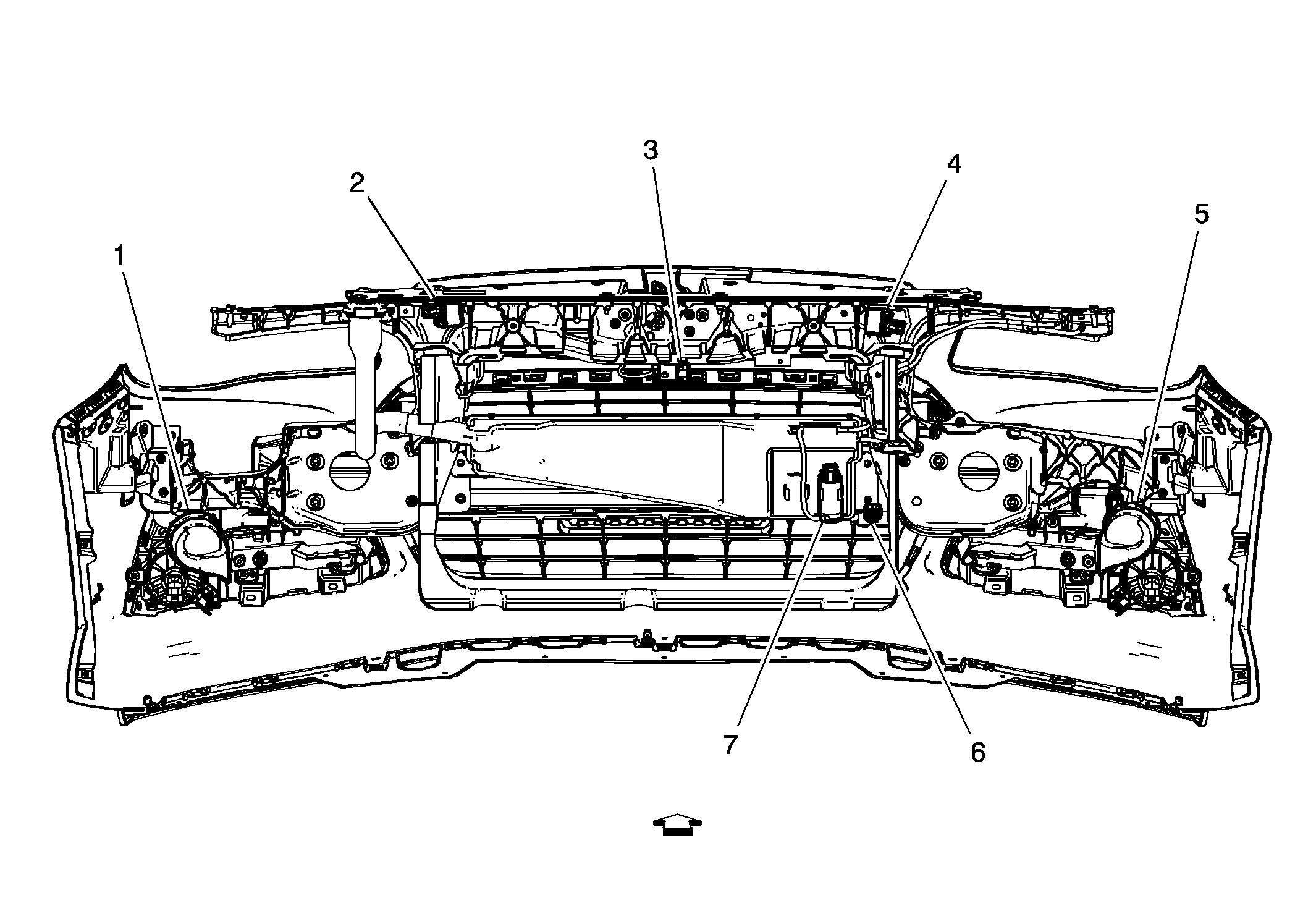

Front Fender Components
| Items |
|---|
| P12L Horn - Left P12L Horn - Left |
| B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left |
| B55 Hood Ajar Switch B55 Hood Ajar Switch |
| B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right |
| P12R Horn - Right P12R Horn - Right |
| B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| G24 Windshield Washer Pump G24 Windshield Washer Pump |

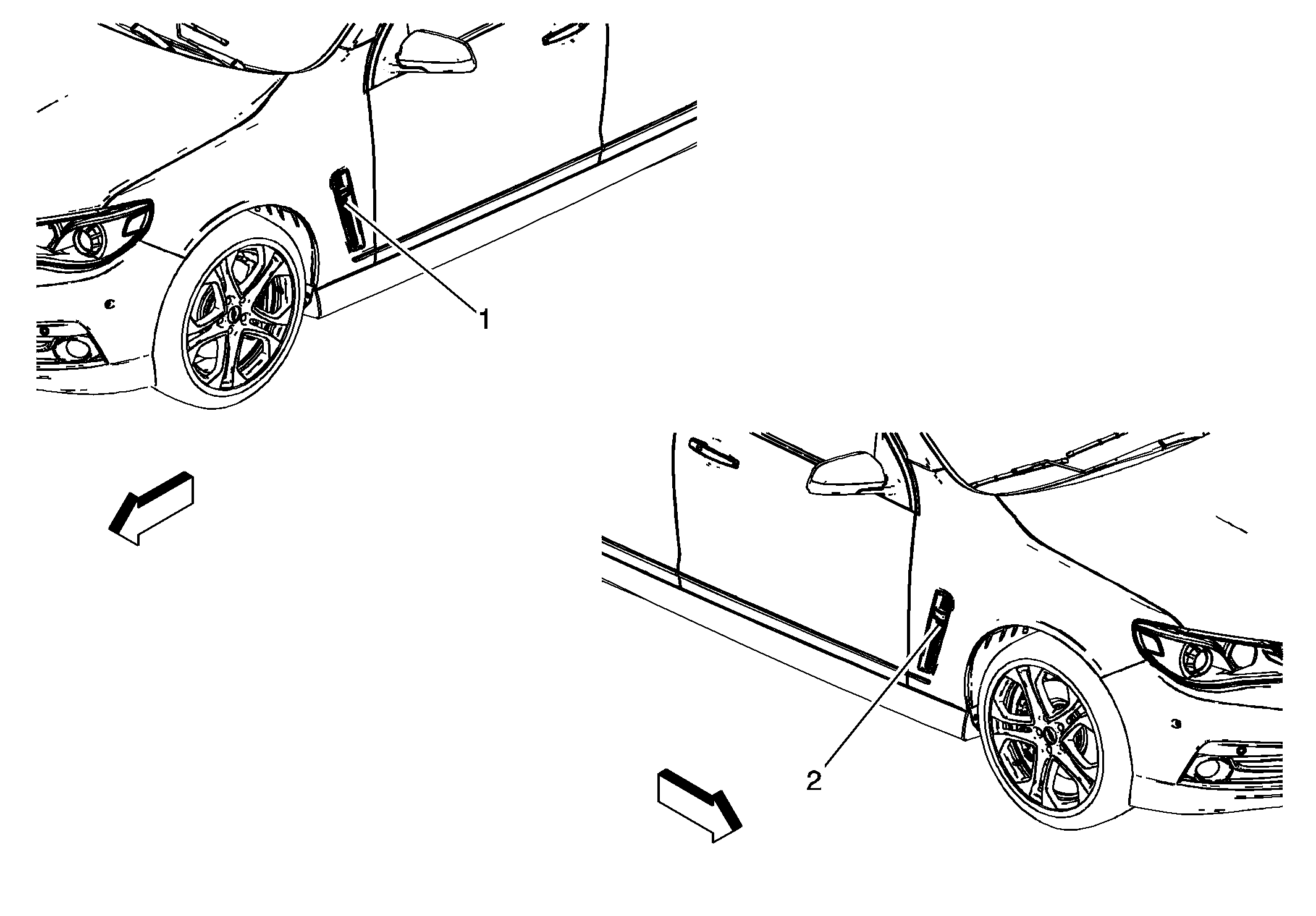

Front Fender Components
| Items |
|---|
| E4Y Turn Signal Repeater Lamp - Left E4Y Turn Signal Repeater Lamp - Left |
| E4Z Turn Signal Repeater Lamp - Right E4Z Turn Signal Repeater Lamp - Right |
