2016 Chevrolet SS Automatic TransFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Install the wheel speed sensor assembly to the steering knuckle.

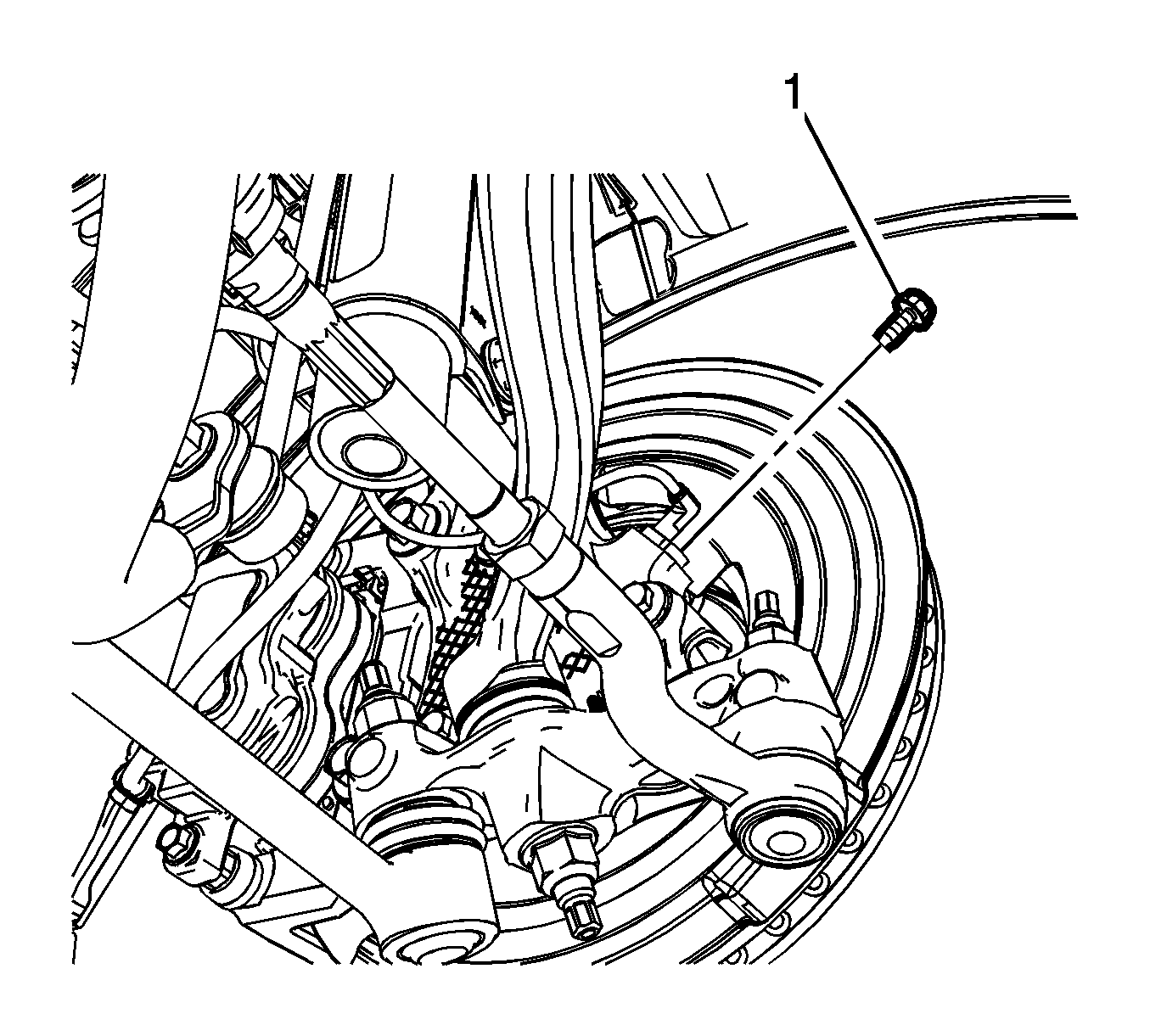

- Install the wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).

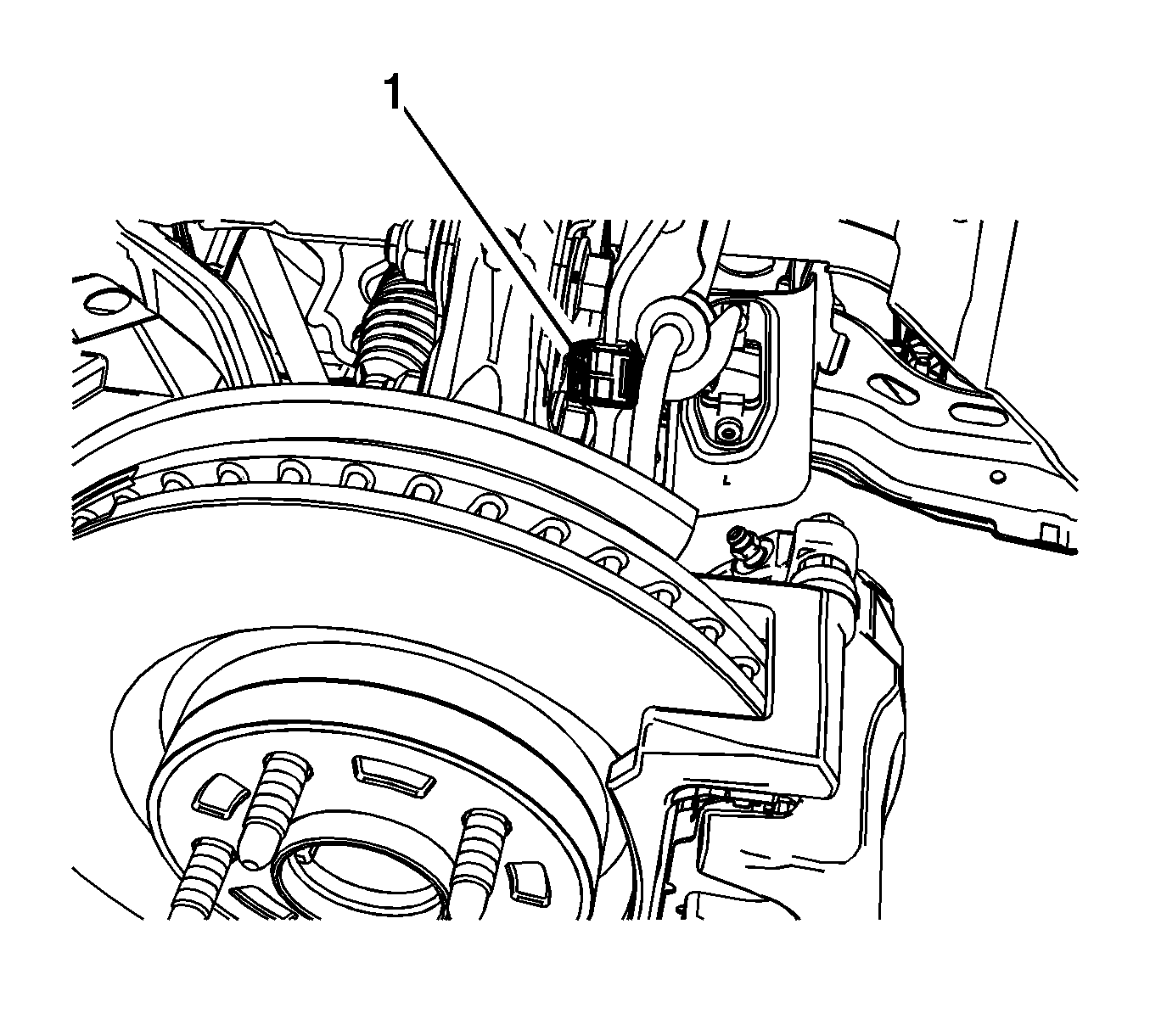

- Secure the wheel speed sensor harness to the clip (1) on the suspension strut.

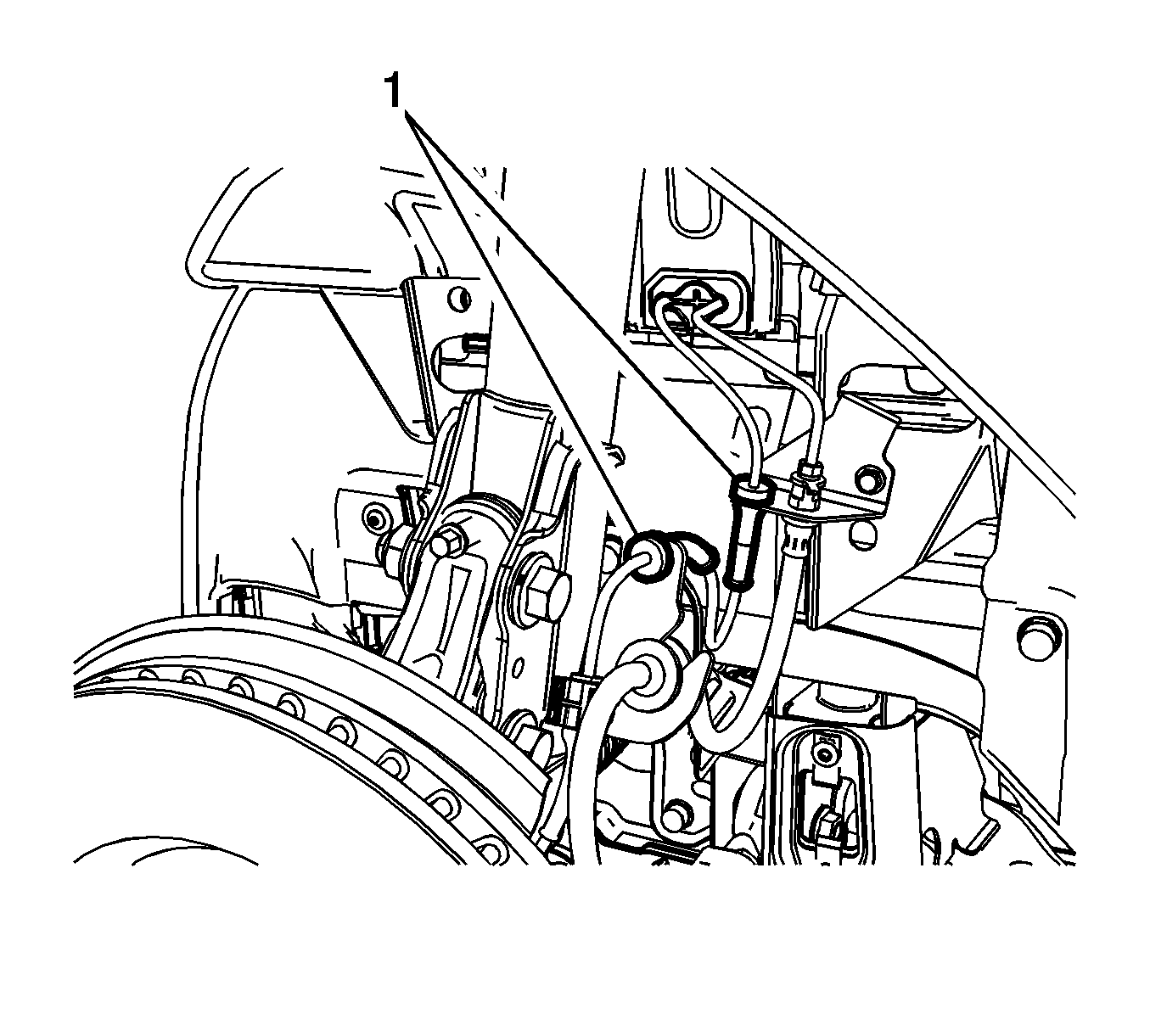

- Secure the wheel speed sensor harness grommets (1) to the brake hose bracket and the suspension strut.
- Feed the wheel speed sensor electrical connector and harness through the wheel house panel closeout.
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle.
- From inside the engine compartment, connect the front wheel speed sensor electrical connector.
- Perform the Diagnostic System Check - Vehicle .
CAUTION:
Refer to Fastener Caution .
