2016 Chevrolet Cruze LS, Automatic TransFACTORY OEM SERVICE PROCEDURE

Body Control Module Replacement

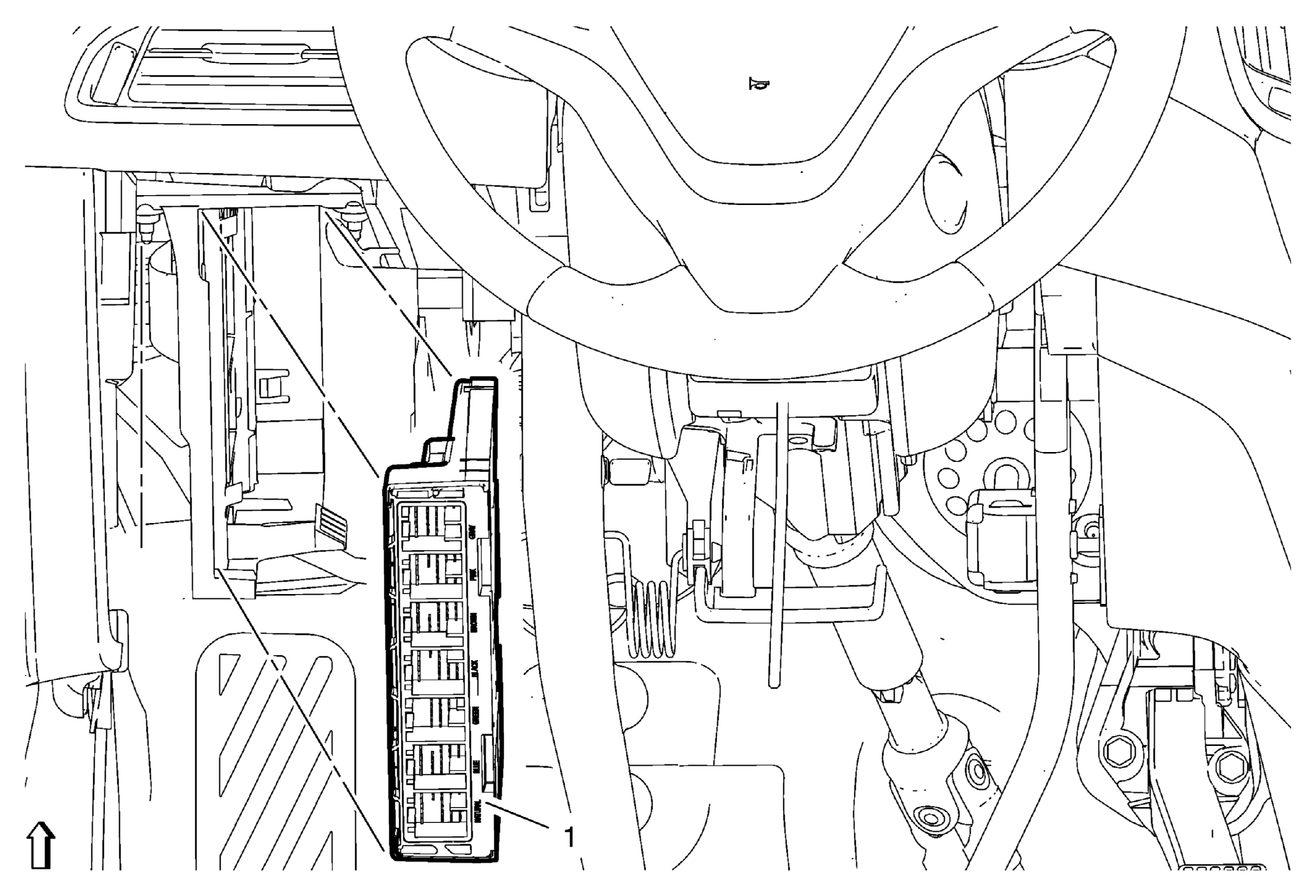

Fig 1: Body Control Module
GM3686232Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Prepare body control module for replacement, refer to Control Module References
  2. Battery Negative Cable Disconnection and Connection
  3. Instrument Panel Knee Bolster Replacement
1 Body Control Module

Procedure

  1. Disconnect the 3 IP wiring harness, the 3 lowest ones on the body control module.
  2. Retrieve the body control module from under the lower instrument panel in the driver footwell area.
  3. Disconnect the 4 body wiring harness electrical connectors.
  4. After repairs, refer to Control Module References for programming and set up procedures.
