2016 Chevrolet City Express LSFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Fuel Tank Fuel Pump Module Replacement - Remove

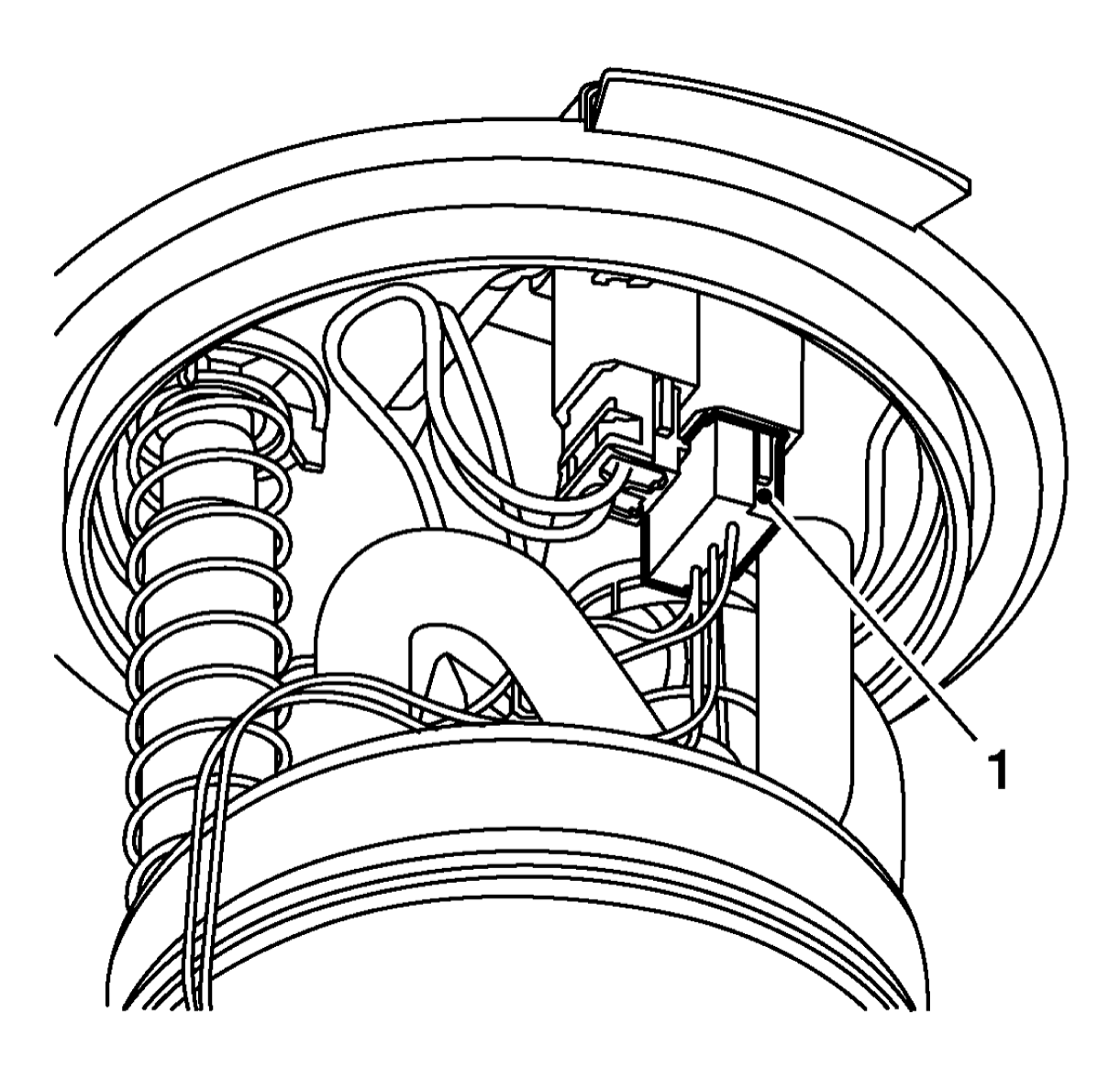

- Disconnect the fuel level sensor electrical connector.

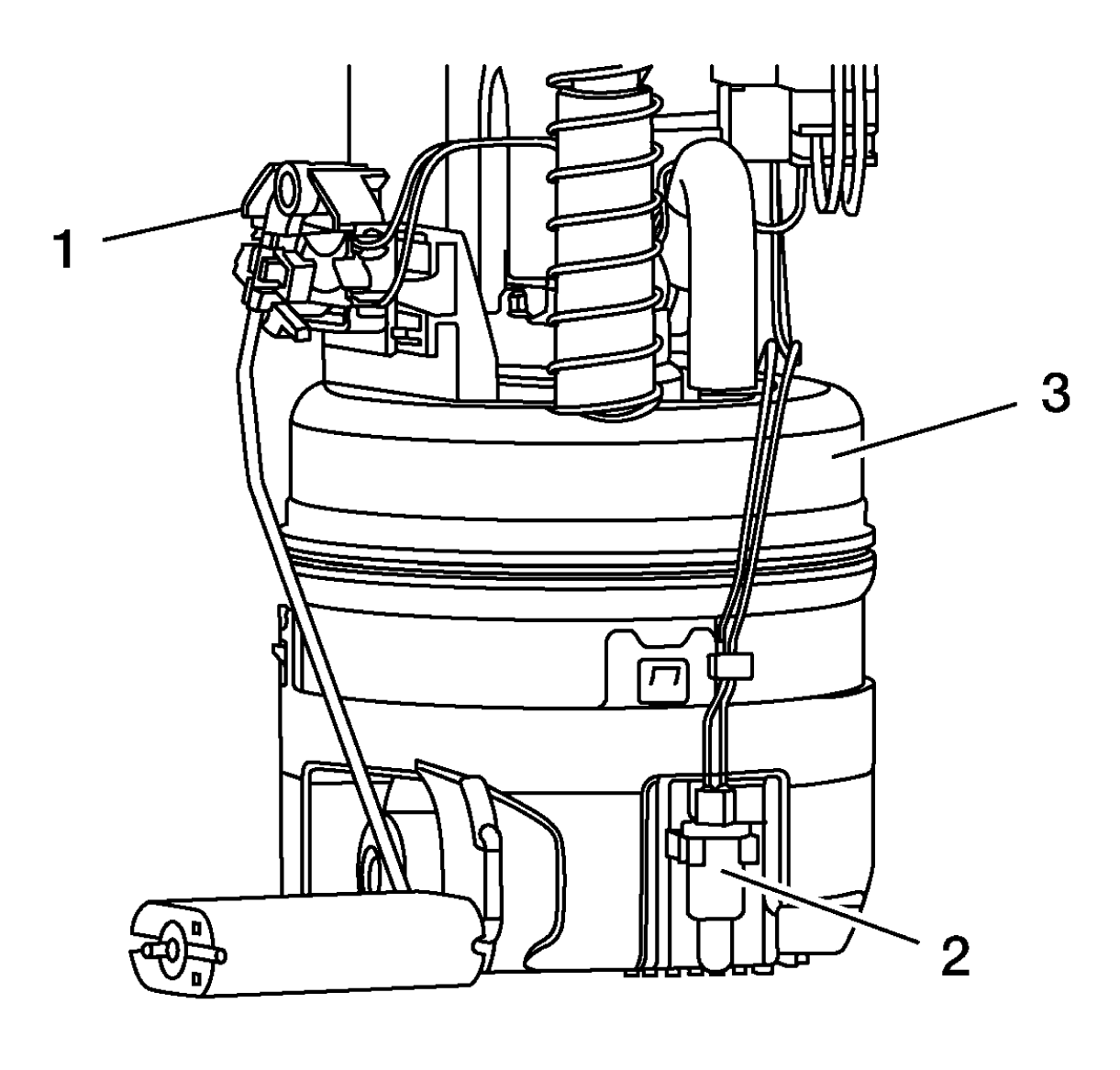

- Remove the fuel tank temperature sensor (2) from the fuel tank fuel pump module (3).

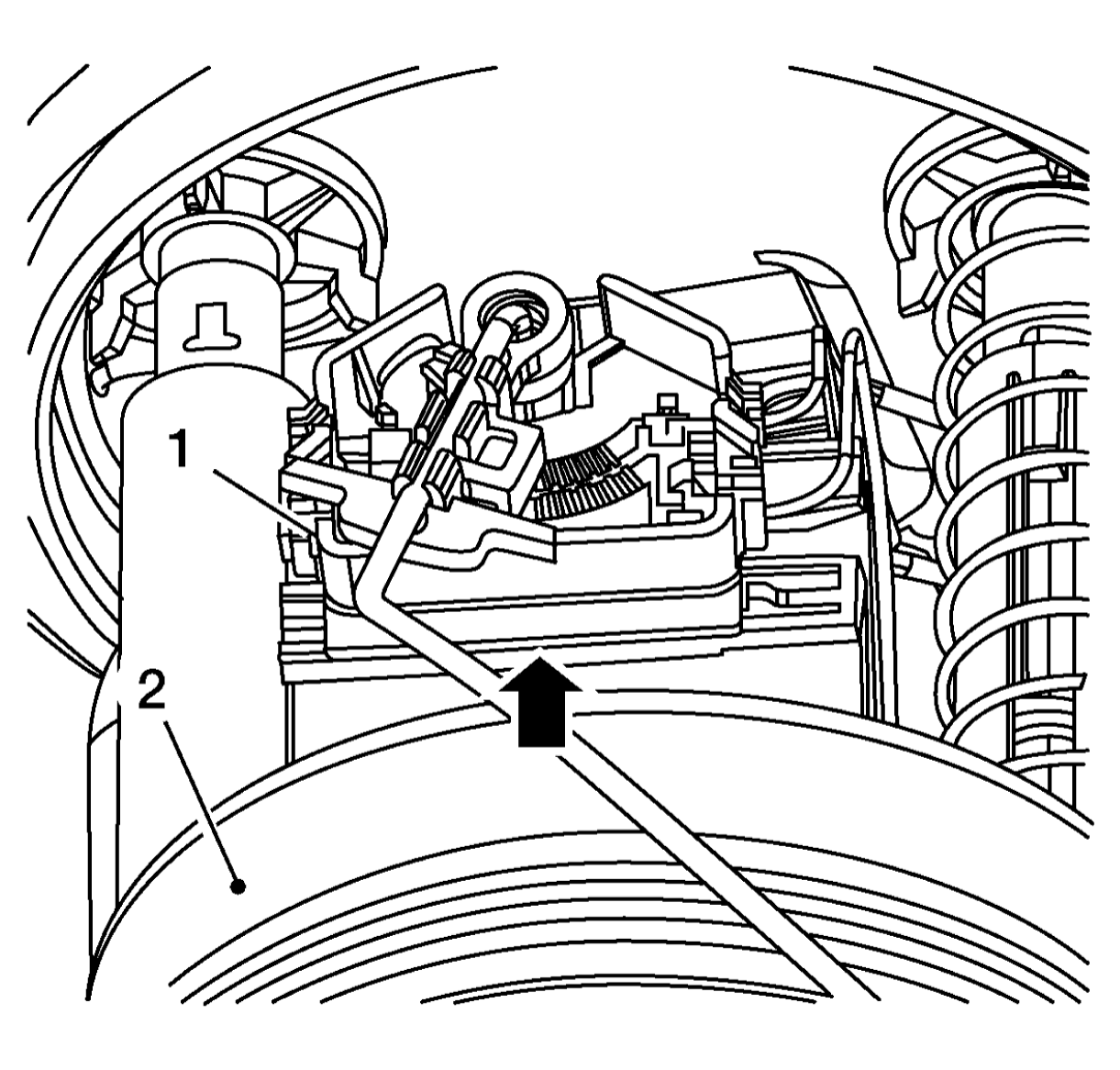

- Using a suitable tool, press upward on the clip and remove the fuel level sensor (1) from the fuel tank fuel pump module (2).
