2016 Chevrolet Camaro SS, 2D Convertible, Automatic TransFACTORY OEM SERVICE PROCEDURE

Body Control Module Bracket Replacement

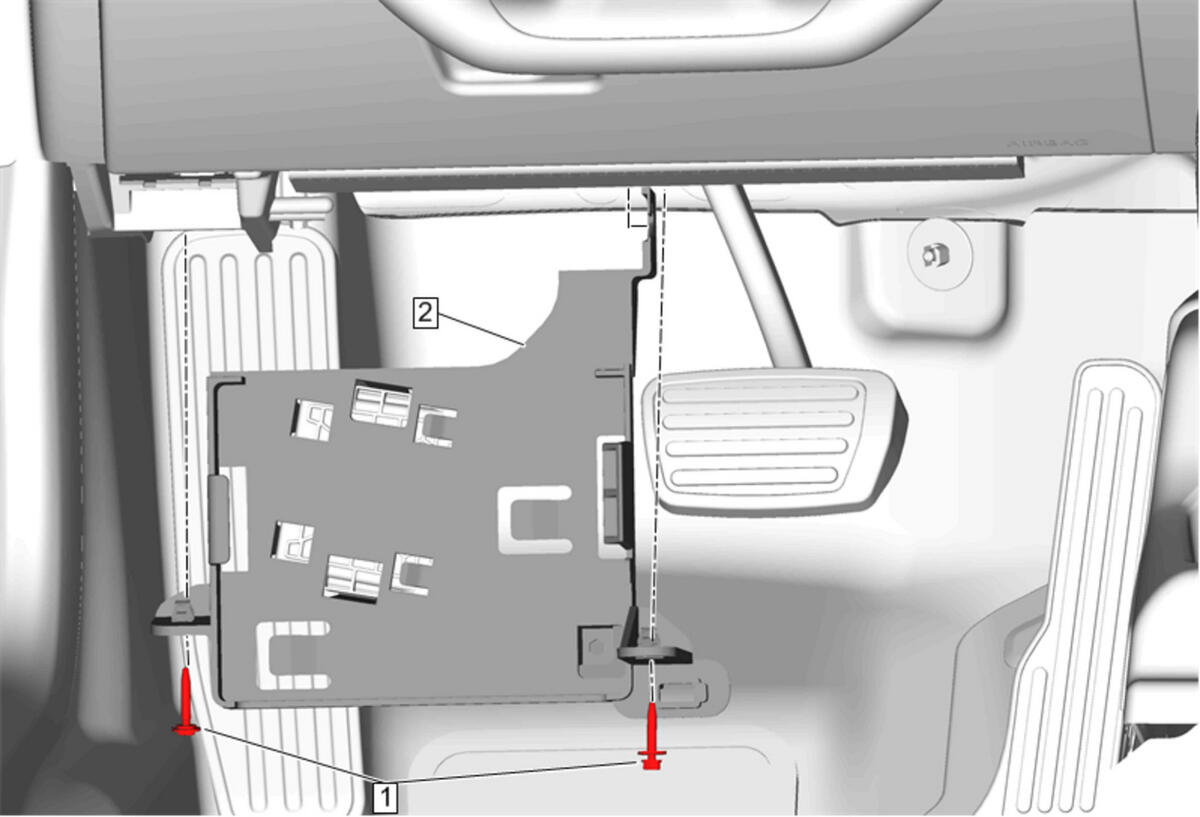

Fig 1: Body Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Lower Airbag Replacement - Driver Side Instrument Panel Knee Bolster Replacement (Driver Knee Bolster Reinforcement) Instrument Panel Outer Air Outlet Duct Replacement - Left Side (Outboard)Instrument Panel Outer Air Outlet Duct Replacement - Left Side (Inboard)
1	Body Control Module Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Body Control Module Bracket Nut
3	Body Control Module Bracket Procedure Disconnect and reposition harness as necessary. Transfer components as necessary.
