2015 Chevrolet Tahoe LTZ, 4WDFACTORY OEM SERVICE PROCEDURE
K73 Telematics Communication Interface Control Module X2

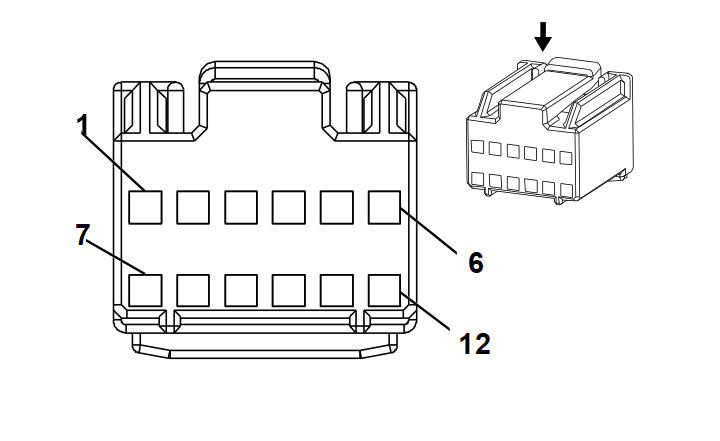

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13575546 | J-35616-16 (LT GN) | J-38125-559 | 15445905 | Delphi 23 | J | J |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | YE | 658 | Cellular Telephone Voice Signal | I | - |
| 2 | 0.35 | BK/YE | 659 | Cellular Telephone Voice Low Reference | I | - |
| 3 | 0.5 | D-BU | 2500 | High Speed GMLAN Serial Data (+) (1) | I | - |
| 4 | 0.5 | WH | 2501 | High Speed GMLAN Serial Data (-) (1) | I | - |
| 5 | 0.5 | BARE | 1792 | Low Reference | I | - |
| 6 | 0.35 | GY/YE | 5149 | Voice Recognition Audio Signal | I | - |
| 7 | 0.35 | WH/D-BU | 5986 | Serial Data Communication Enable | I | - |
| 8 | 0.35 | BARE | 1782 | Low Reference | I | - |
| 9 | 0.35 | D-BU | 655 | Cellular Telephone Microphone Signal | I | - |
| 10 | 0.35 | BK/BN | 654 | Cellular Telephone Microphone Low Reference | I | - |
| 11 | - | - | - | Not Occupied | - | - |
| 12 | 0.35 | BK/GY | 5152 | Voice Recognition Audio Low Reference | I | - |
