2015 Chevrolet Tahoe LTZ, 4WDFACTORY OEM SERVICE PROCEDURE

Parking Assist Control Module Replacement

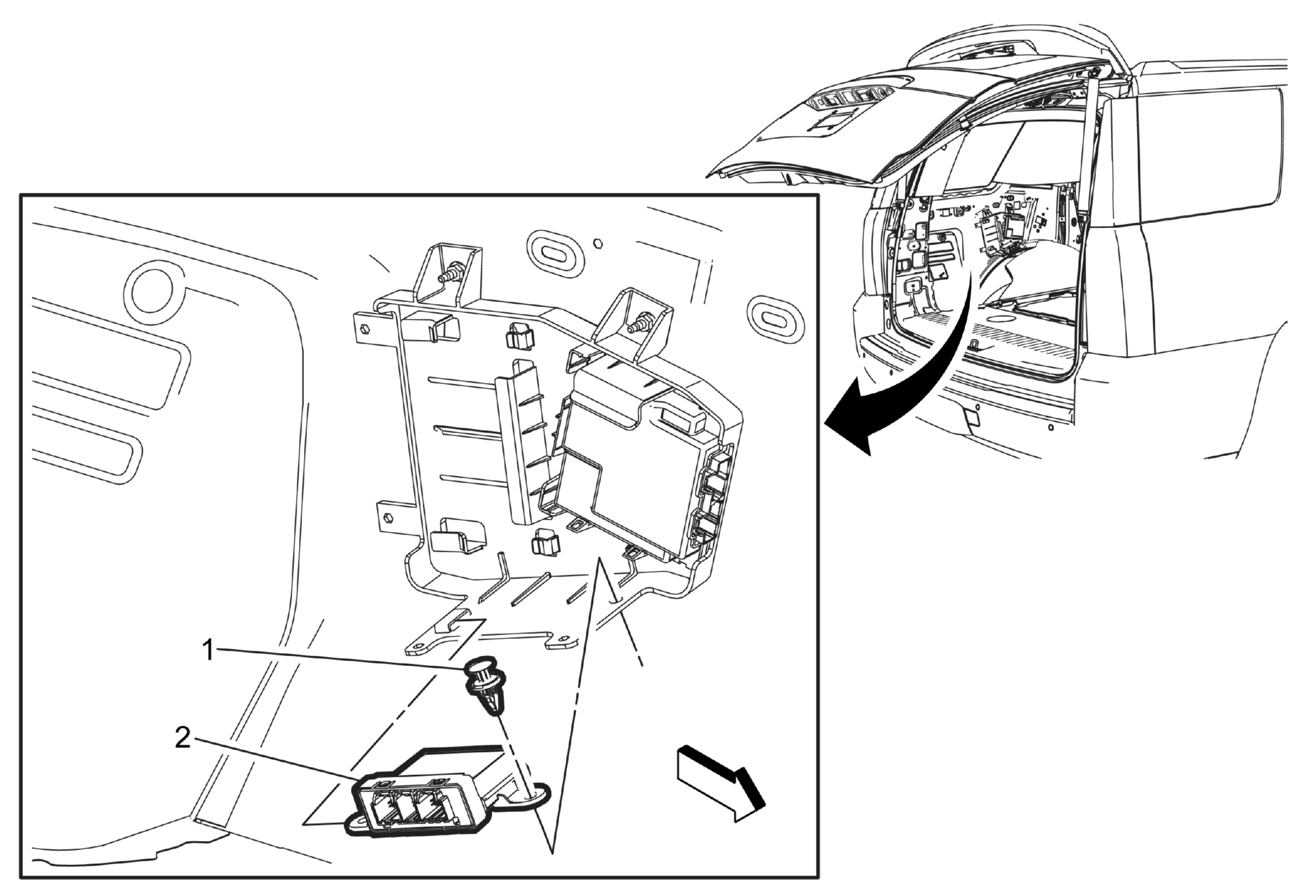

Fig 1: Parking Assist Control Module
GM3635726Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the left hand quarter lower rear trim door from the left quarter lower rear trim panel.
  2. Remove the body side rear trim panel stowage compartment tray from the left quarter lower rear trim panel, if vehicle is a long wheelbase.
  3. Remove the body side rear trim panel cup holder from the quarter lower rear trim panel, if the vehicle is a short wheelbase.
1 Rear Object Alarm Control Module Push Pin Retainer
2 Rear Object Alarm Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. For programming and set up, refer to Control Module References .
