Keyless Entry Control Module Bracket Replacement

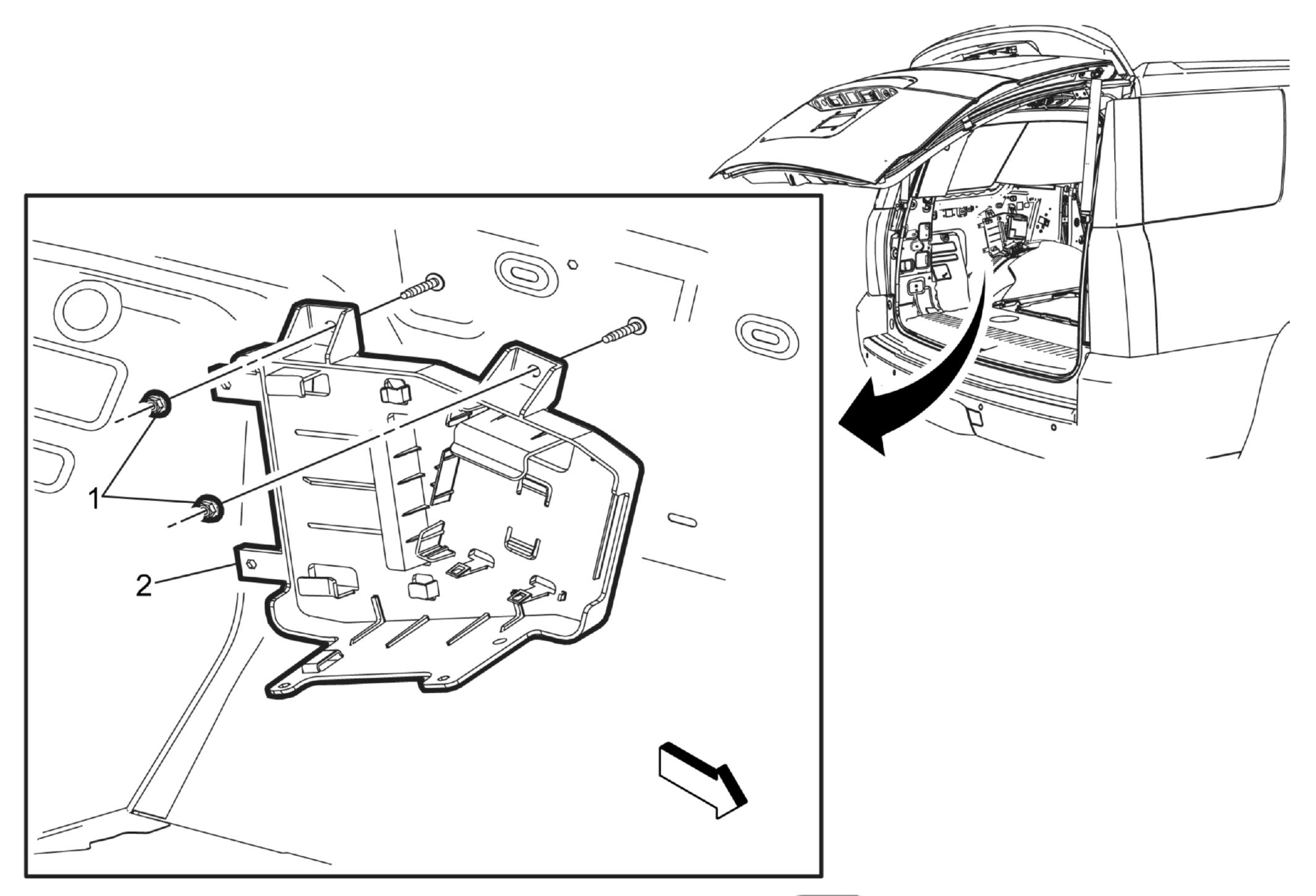

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the quarter lower rear trim panel - left side. Refer to Quarter Lower Rear Trim Panel Replacement (Left Side, Standard Wheelbase)Quarter Lower Rear Trim Panel Replacement (Right Side, Standard Wheelbase)Quarter Lower Rear Trim Panel Replacement (Left Side, Extended Wheelbase)Quarter Lower Rear Trim Panel Replacement (Right Side, Extended Wheelbase) . |
|
| 1 | Keyless Entry Control Module Bracket Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Keyless Entry Control Module Bracket Procedure
|
